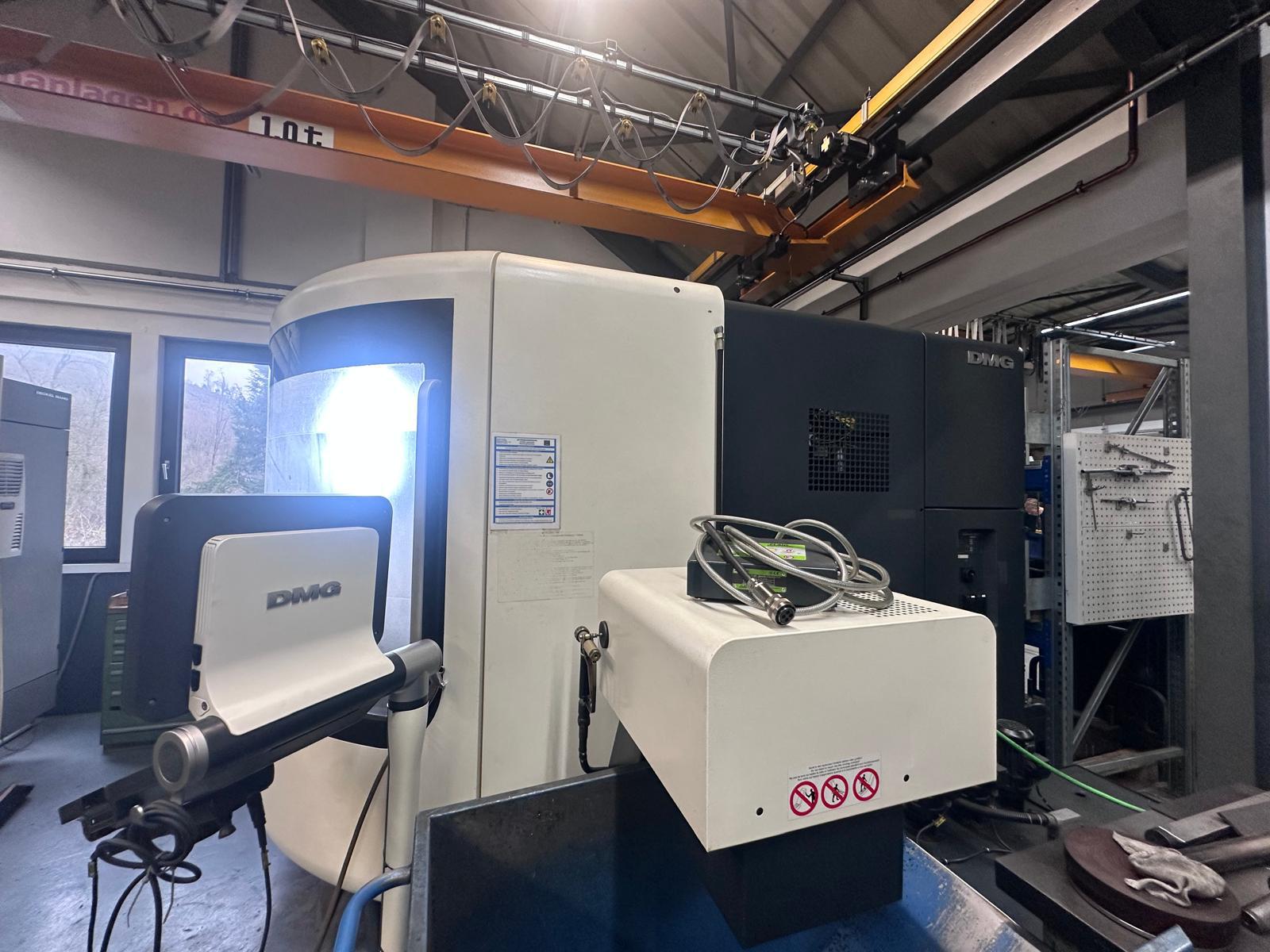

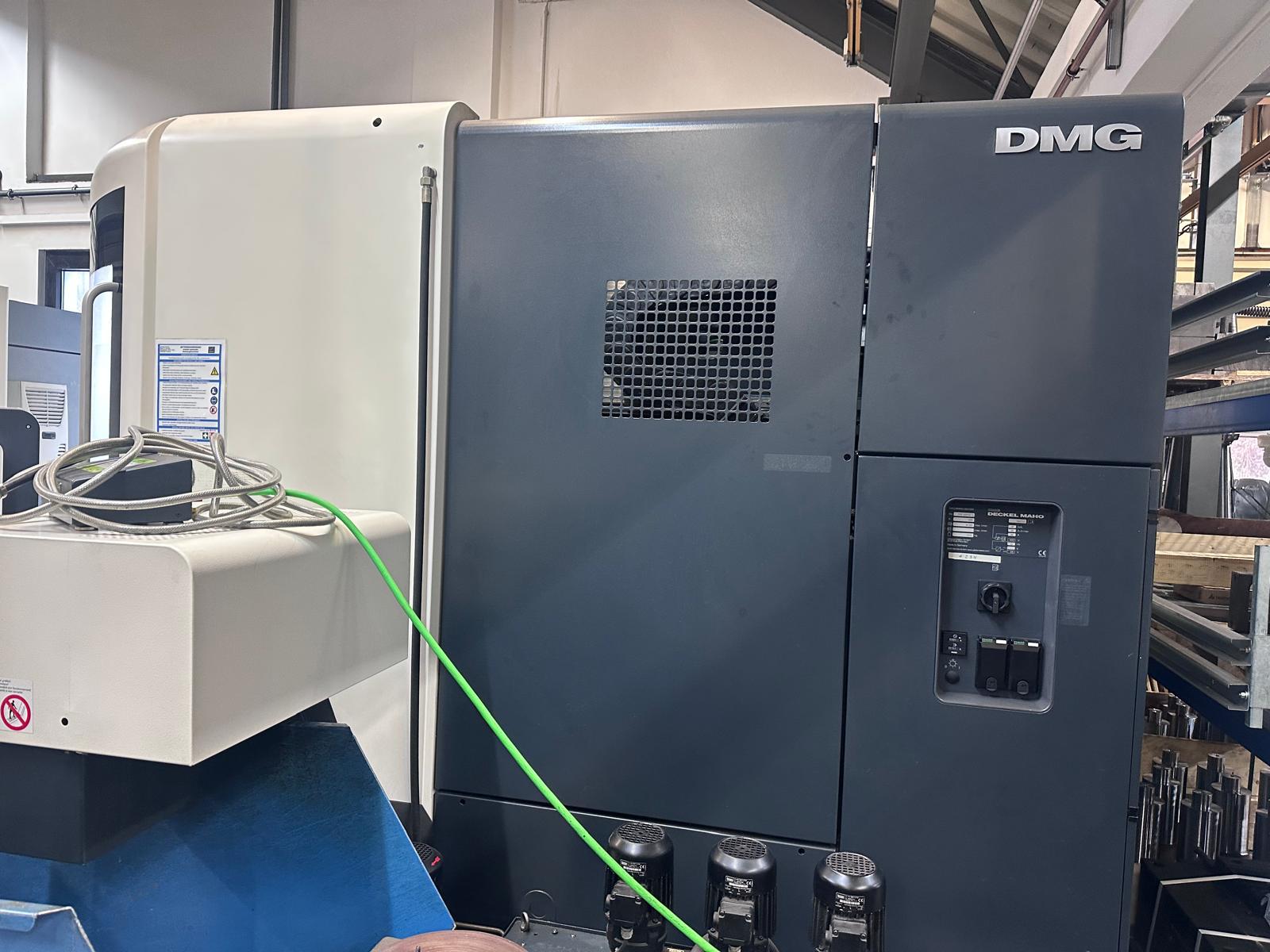

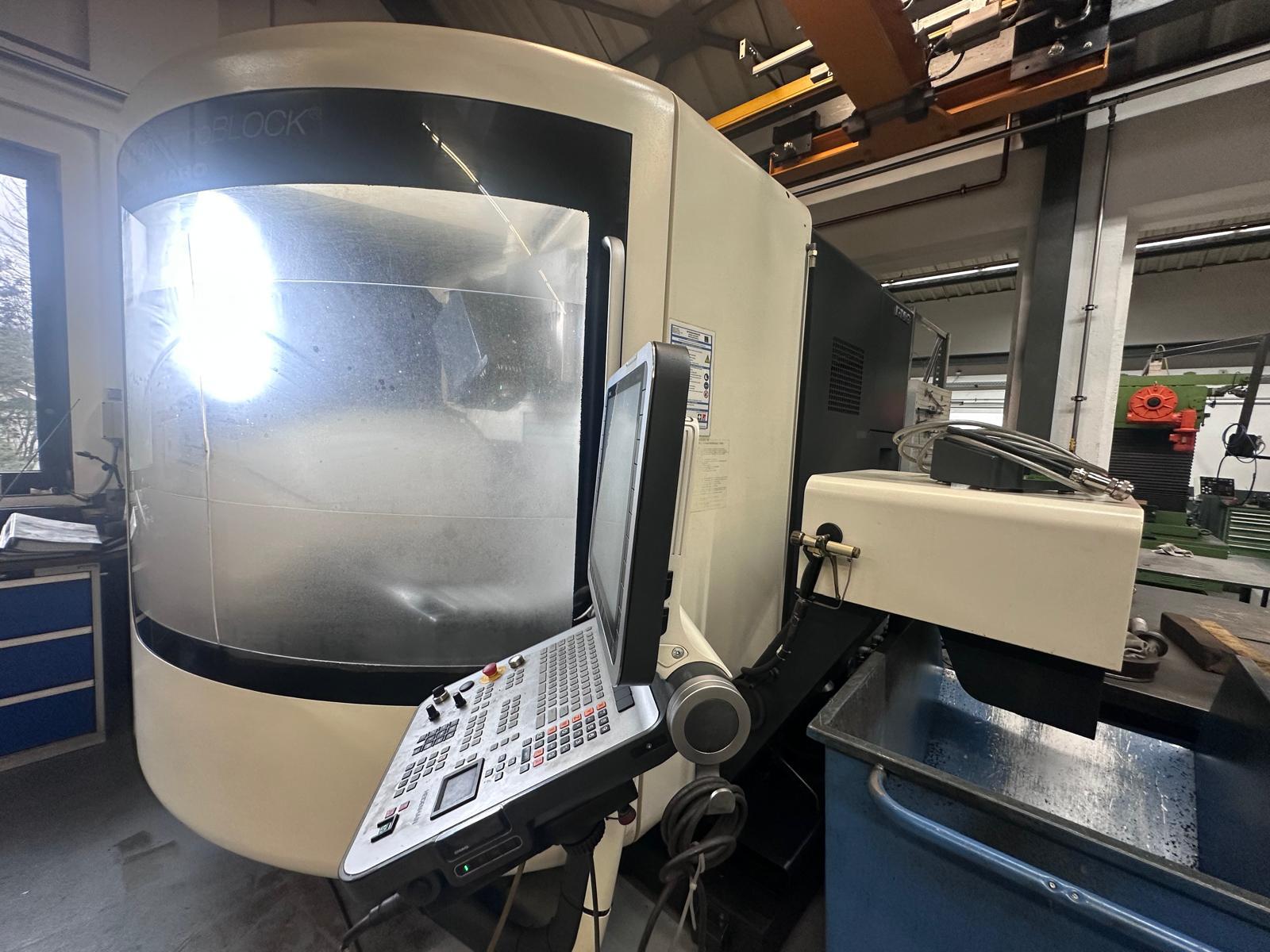

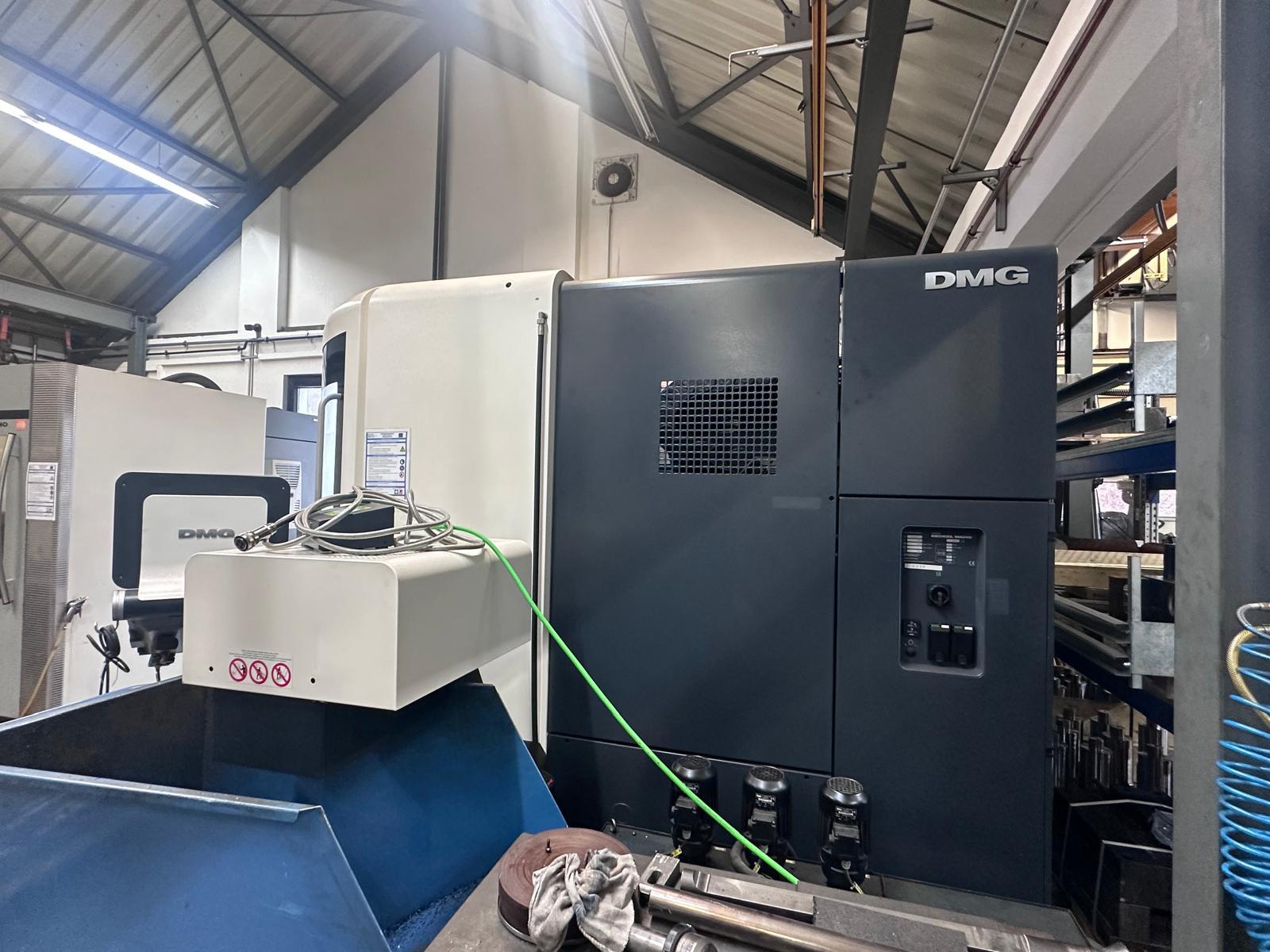

DMG DMU 80 monoBLOCK, 5-axis
Year of manufacture: 2010

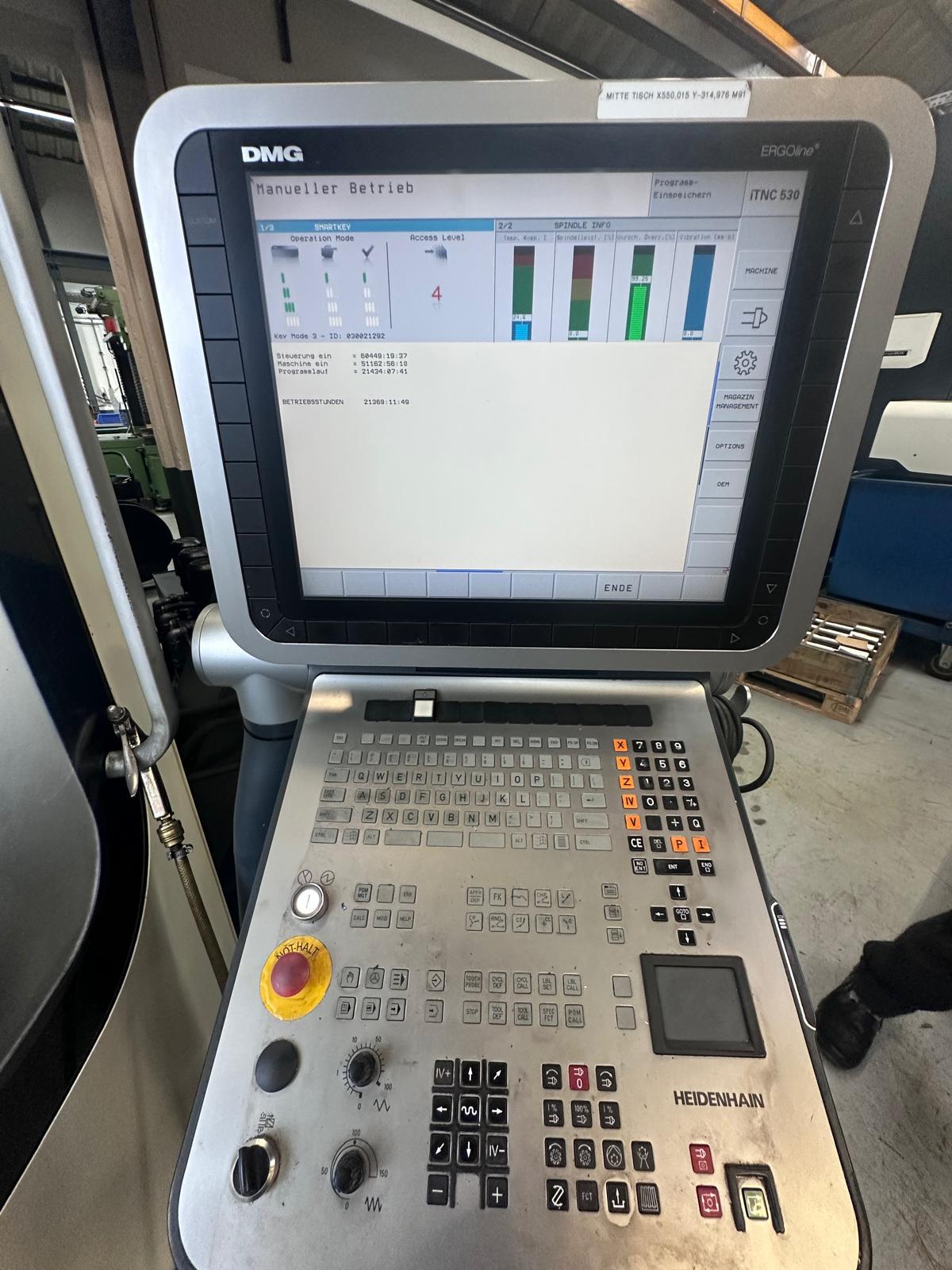

Control: iTNC 530

Technical specifications
x-travel 880 mm
y-travel 630 mm
z-travel 630 mm
control iTNC 530 Heidenhain
turning speed range - main spindle max. 12.000 min/-1
tool taper SK40

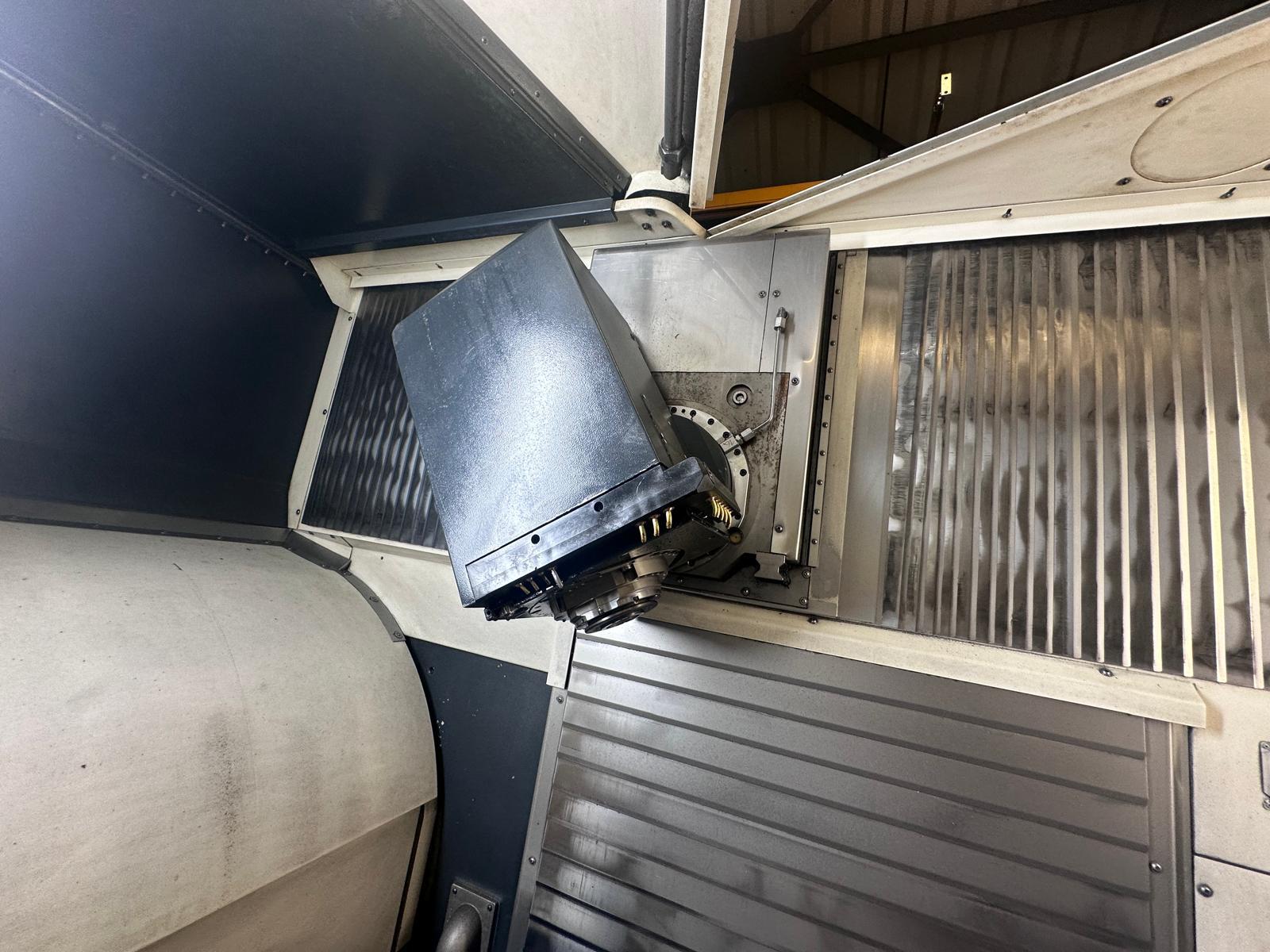

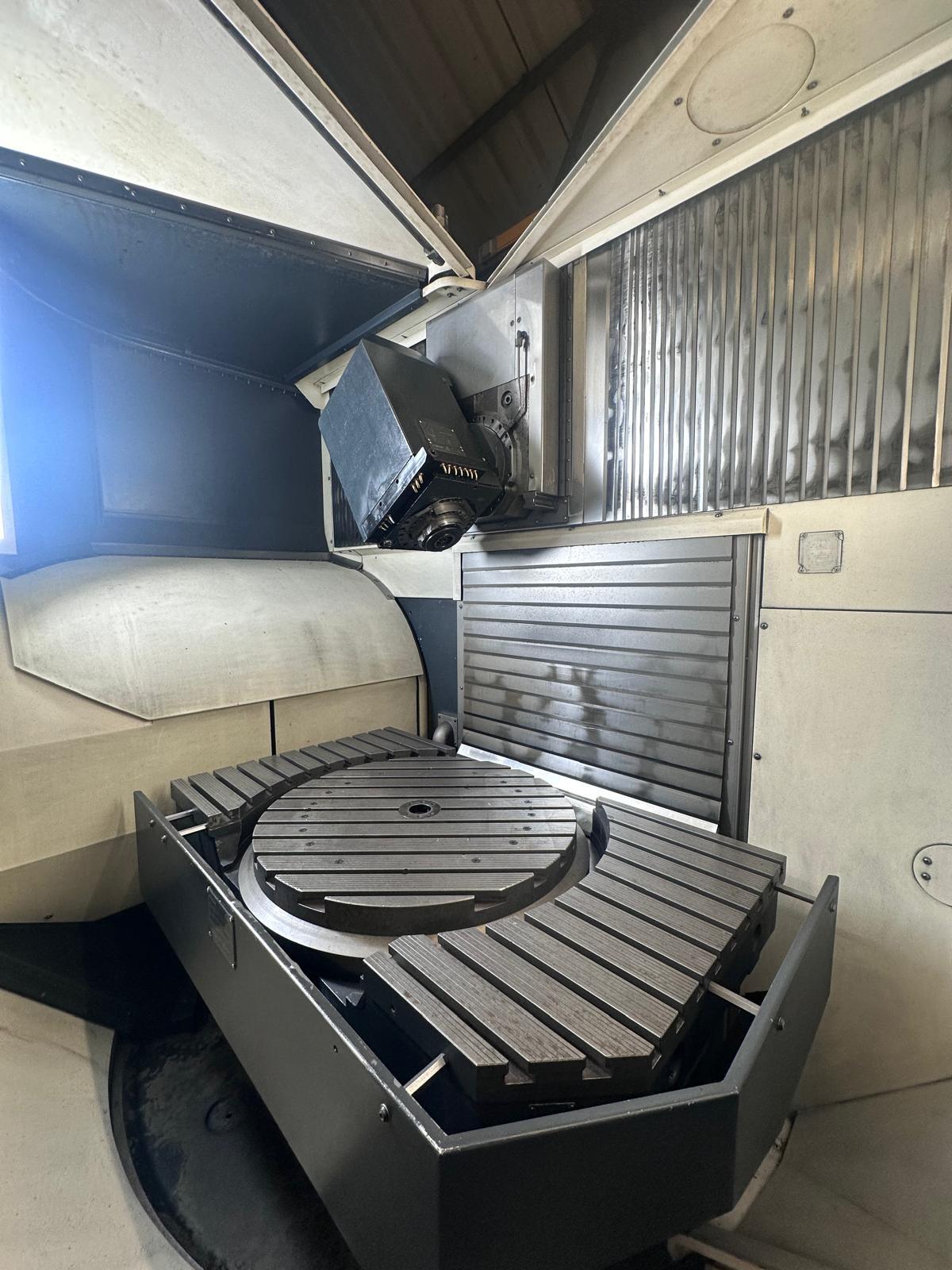

swivel milling head B-axis: +30° / -120 °

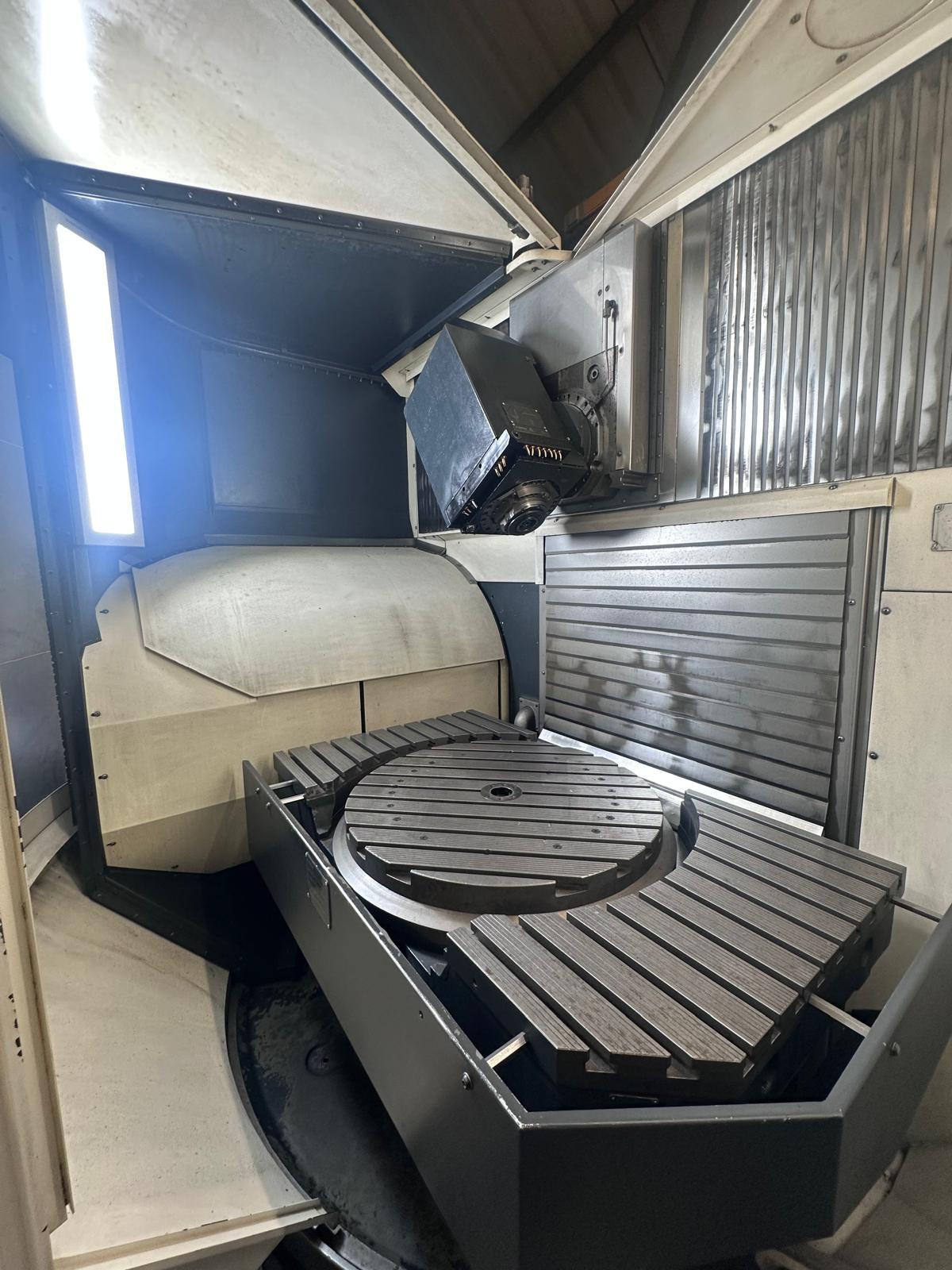

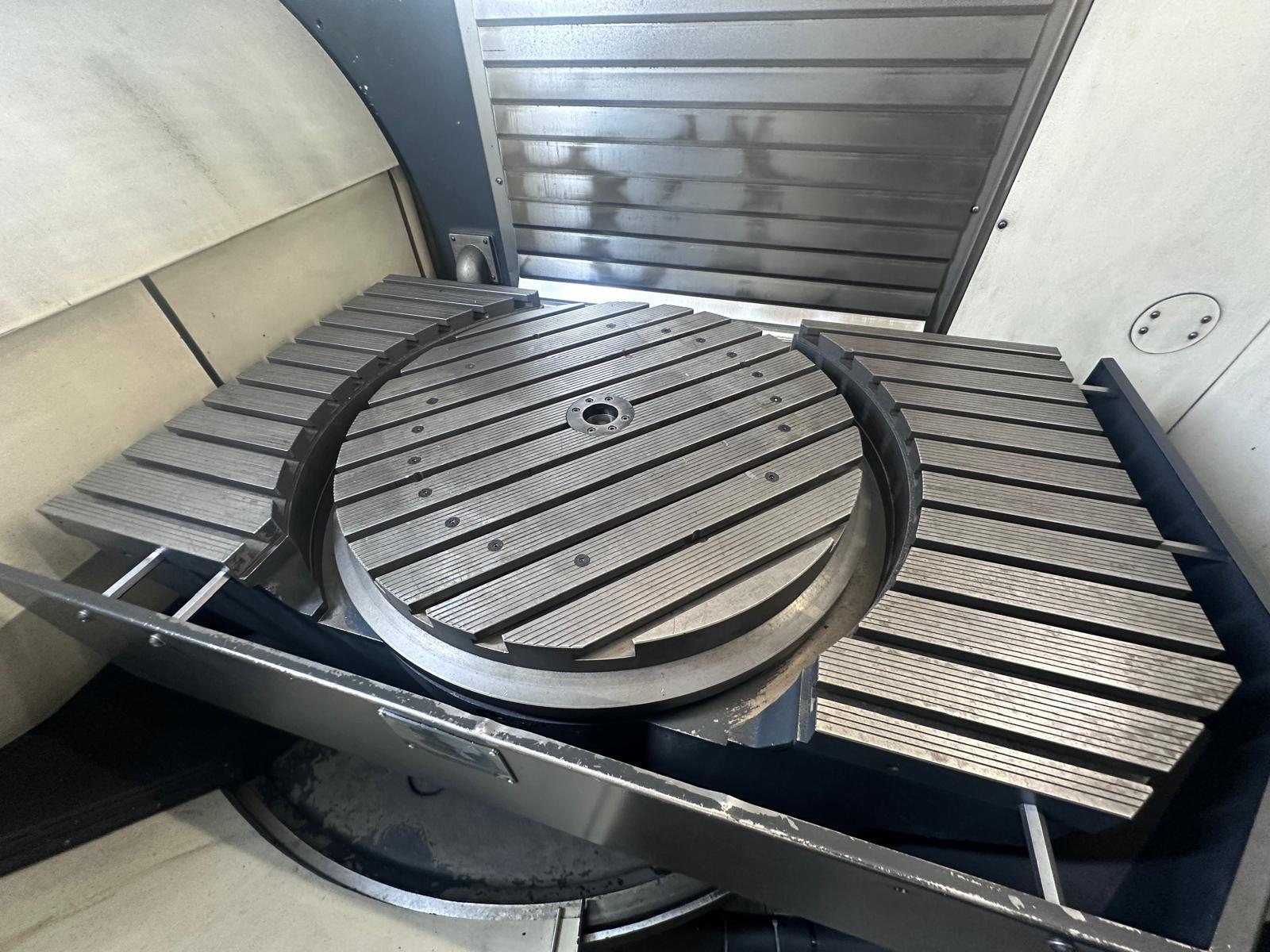

table surface area Ø 700 / 1.250 x 700 mm
max. table load 650 kg
NC rotary table, integrated, C-axis: 360 °
number of toolpositions 2x16 pos.
tool taper SK40
max. tool diameter 80 mm
max. tool-dia with free toolbox 130 mm
max. tool weight 8,0 kg
max. tool length 315 mm
feed speeds max. 30.000 mm/min
rapid traverse 30 m/min
total power requirement 48 kVA
weight of the machine ca. 12 t
dimensions of the machine ca. 4,5 x 4,0 x 2,6 m

Accessories/options:

- swarf conveyor
- replaced X/Y/Z ball screws and spindle in 2019
- full set of documentations
- precision vice
- tool holders
