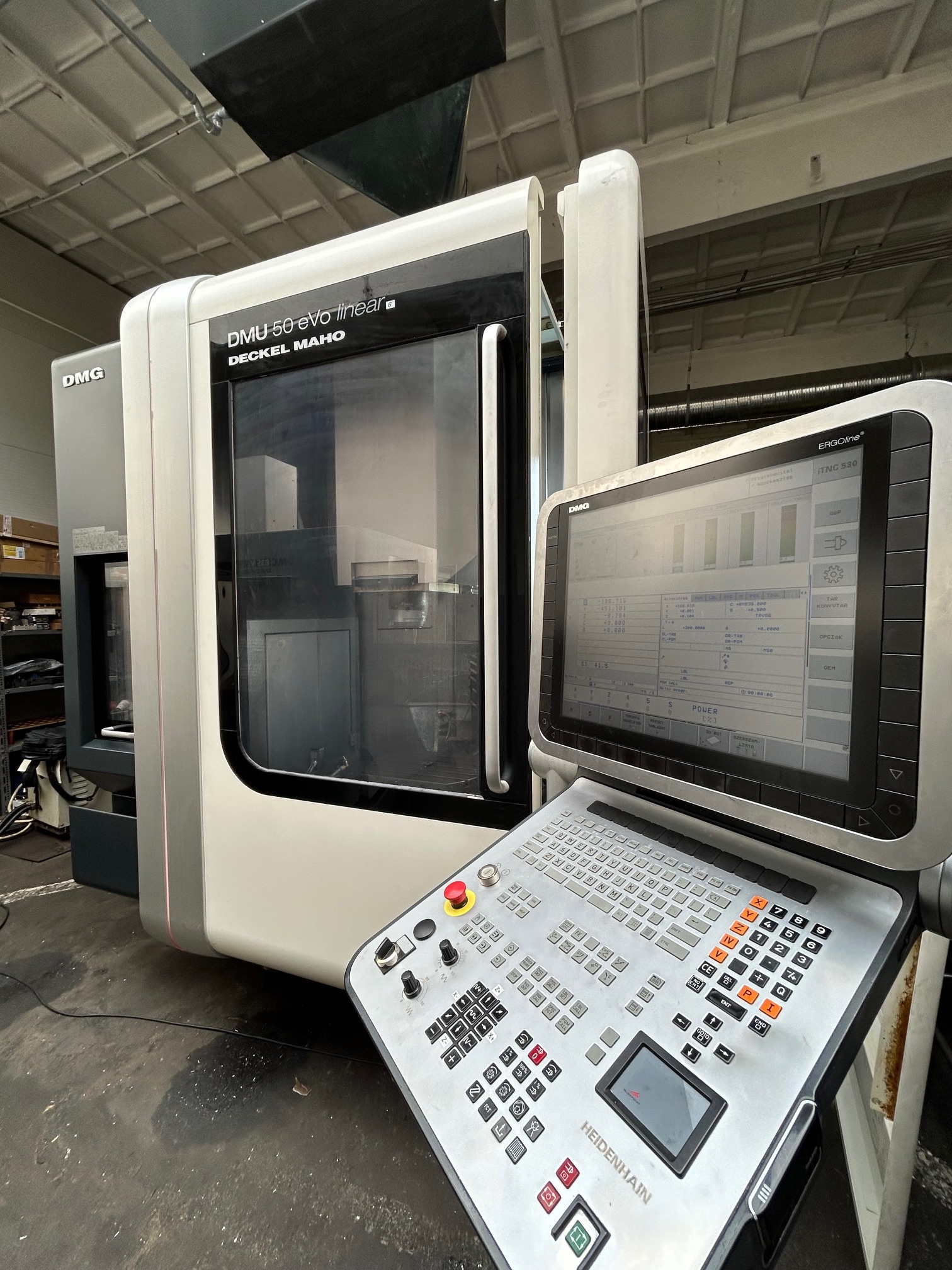

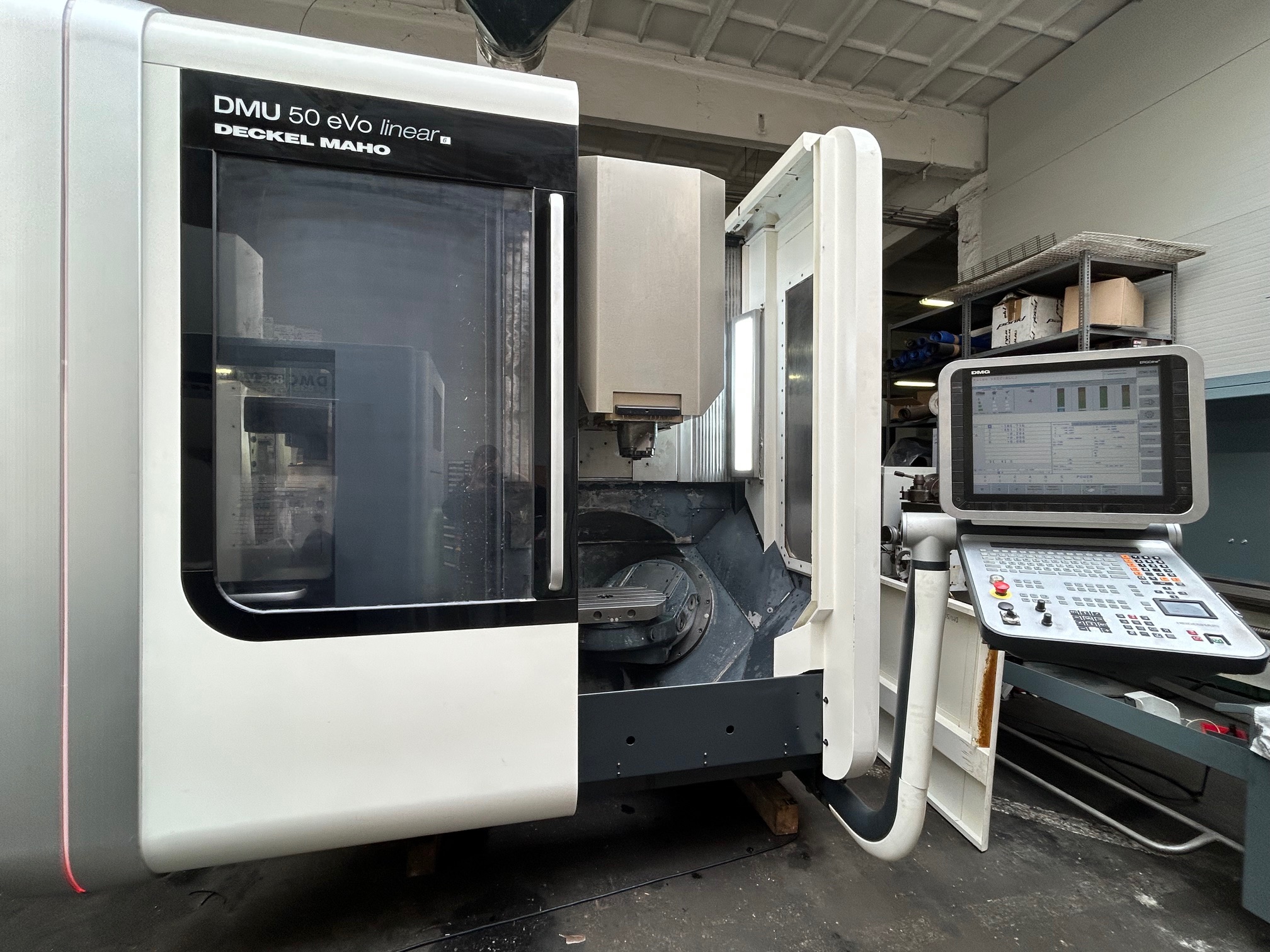

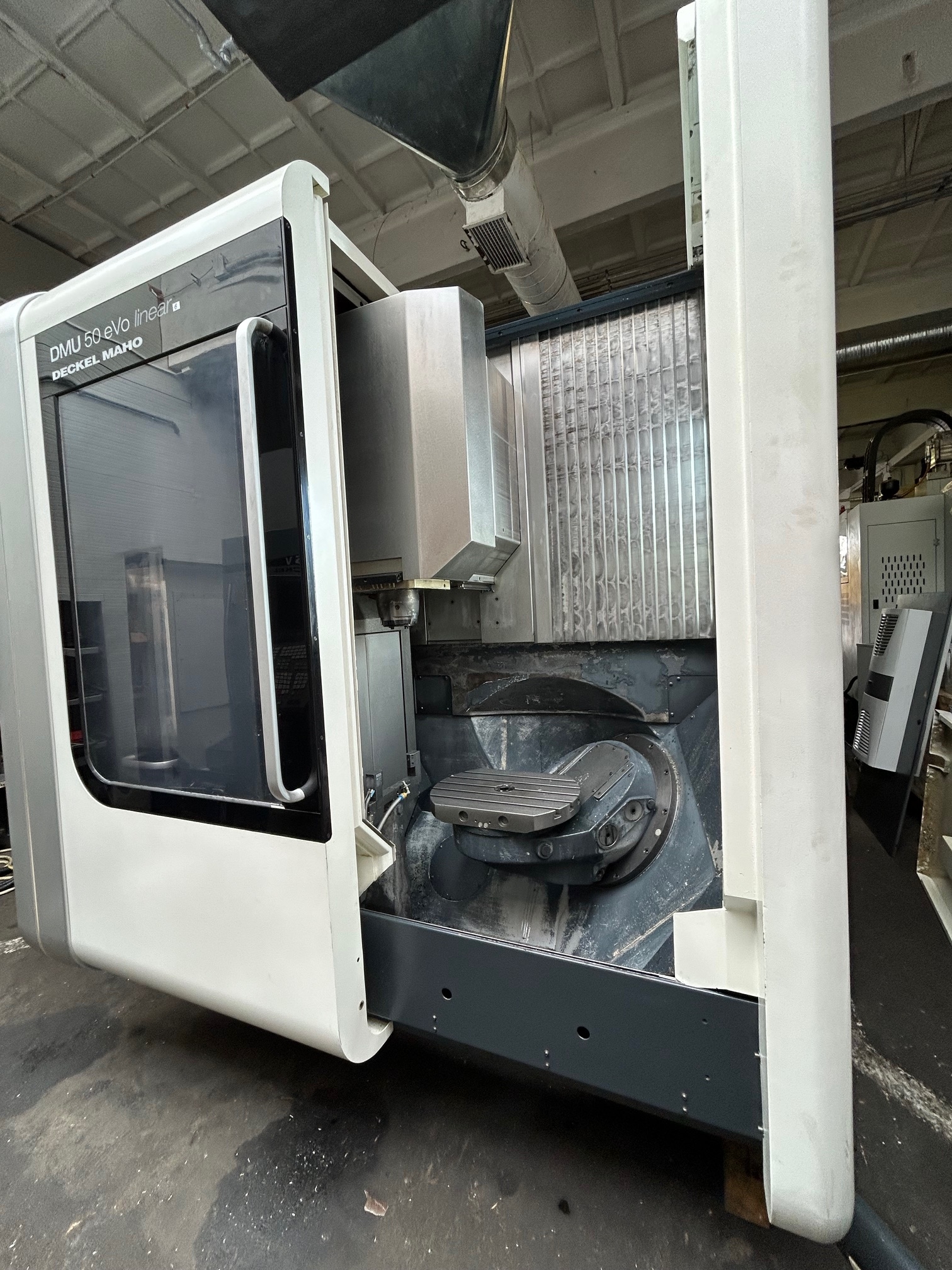

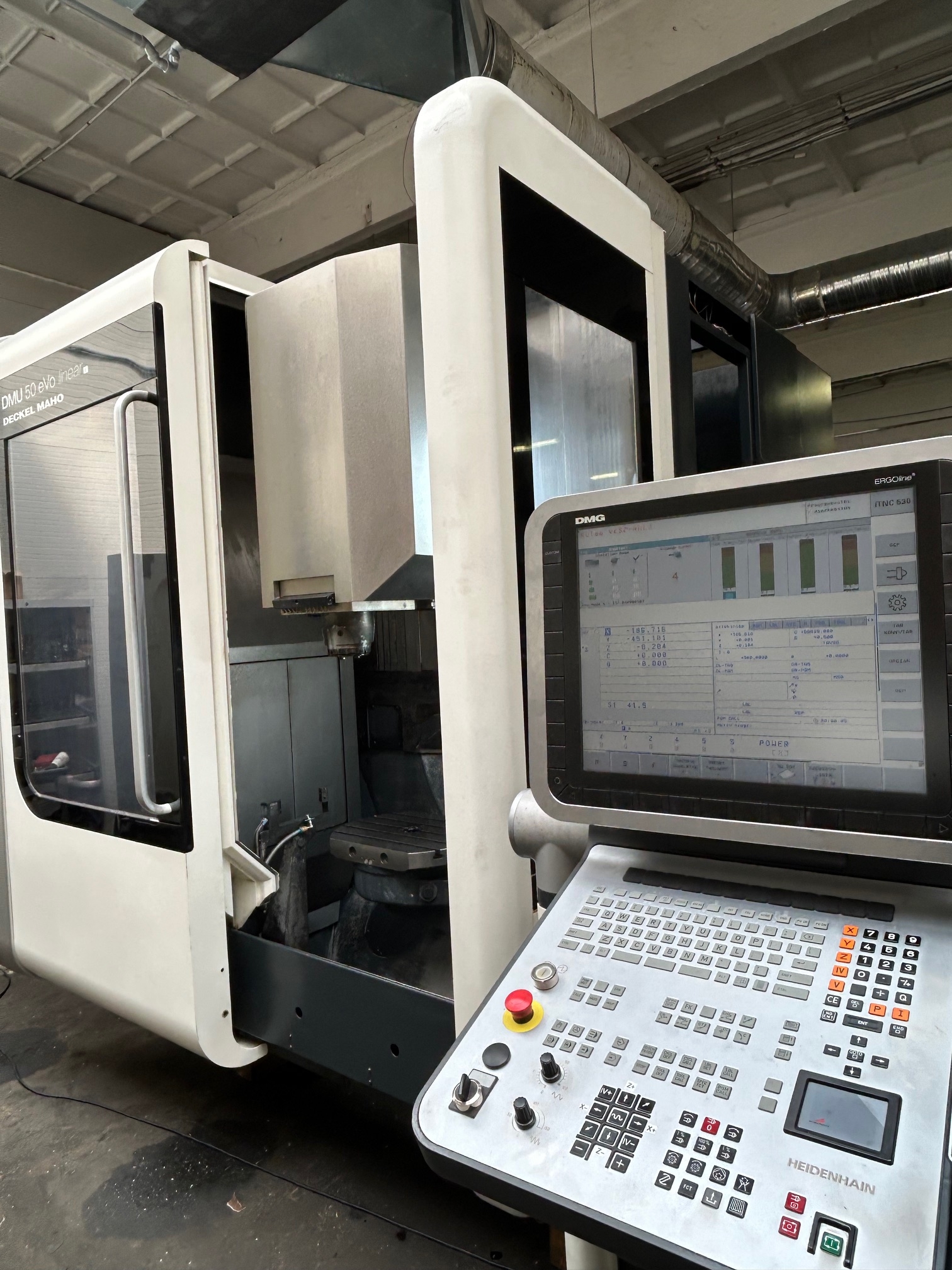

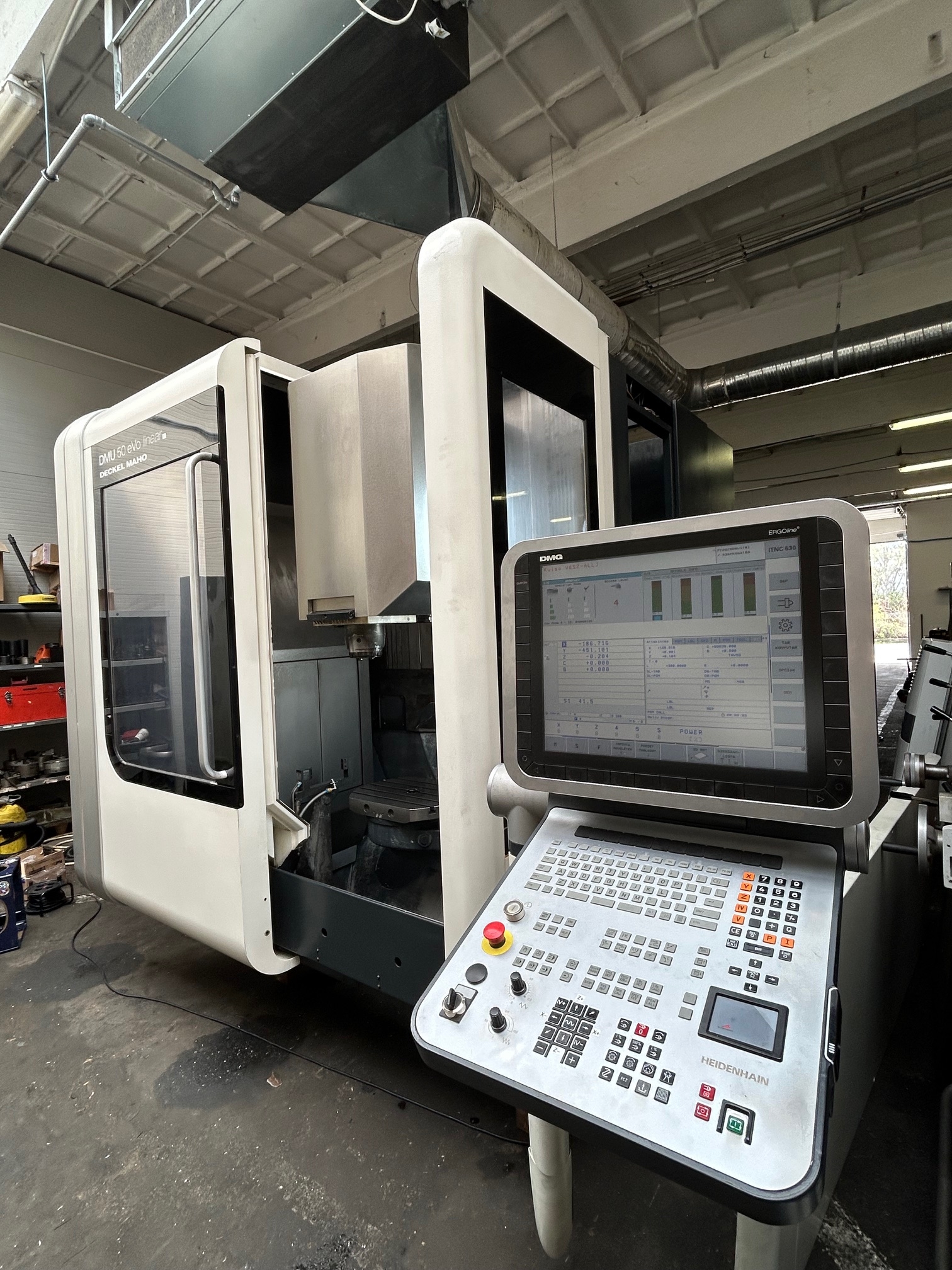

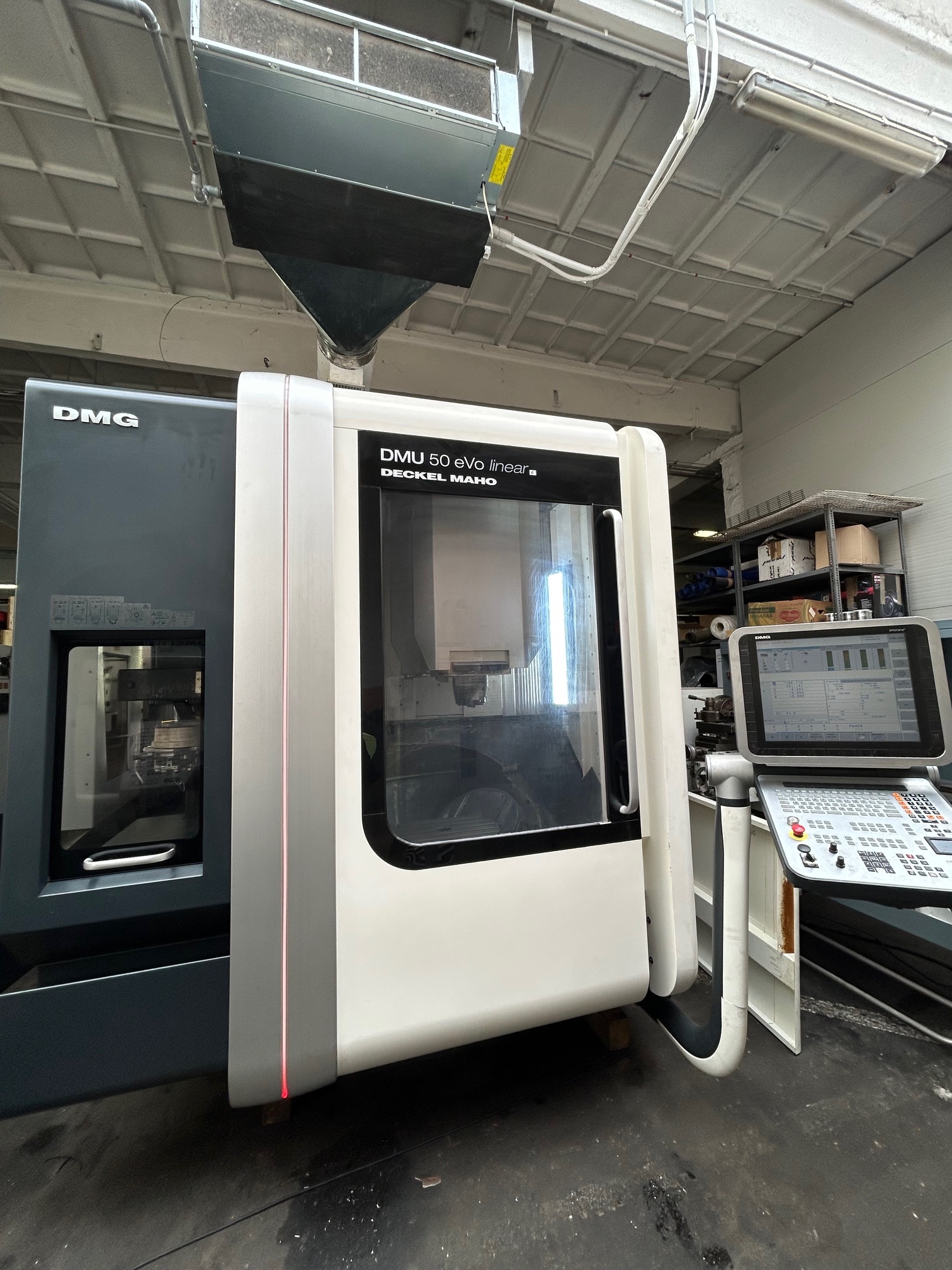

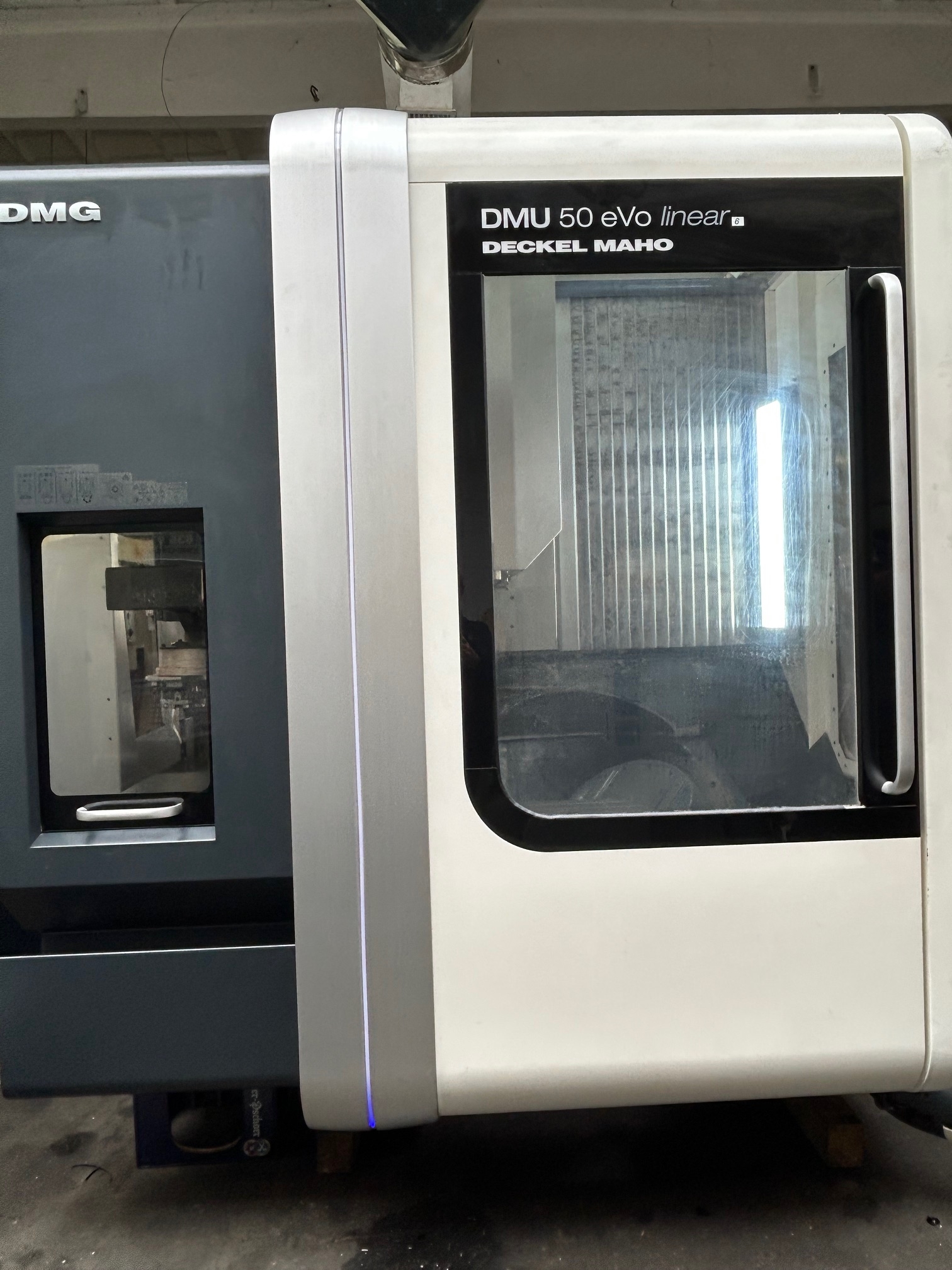

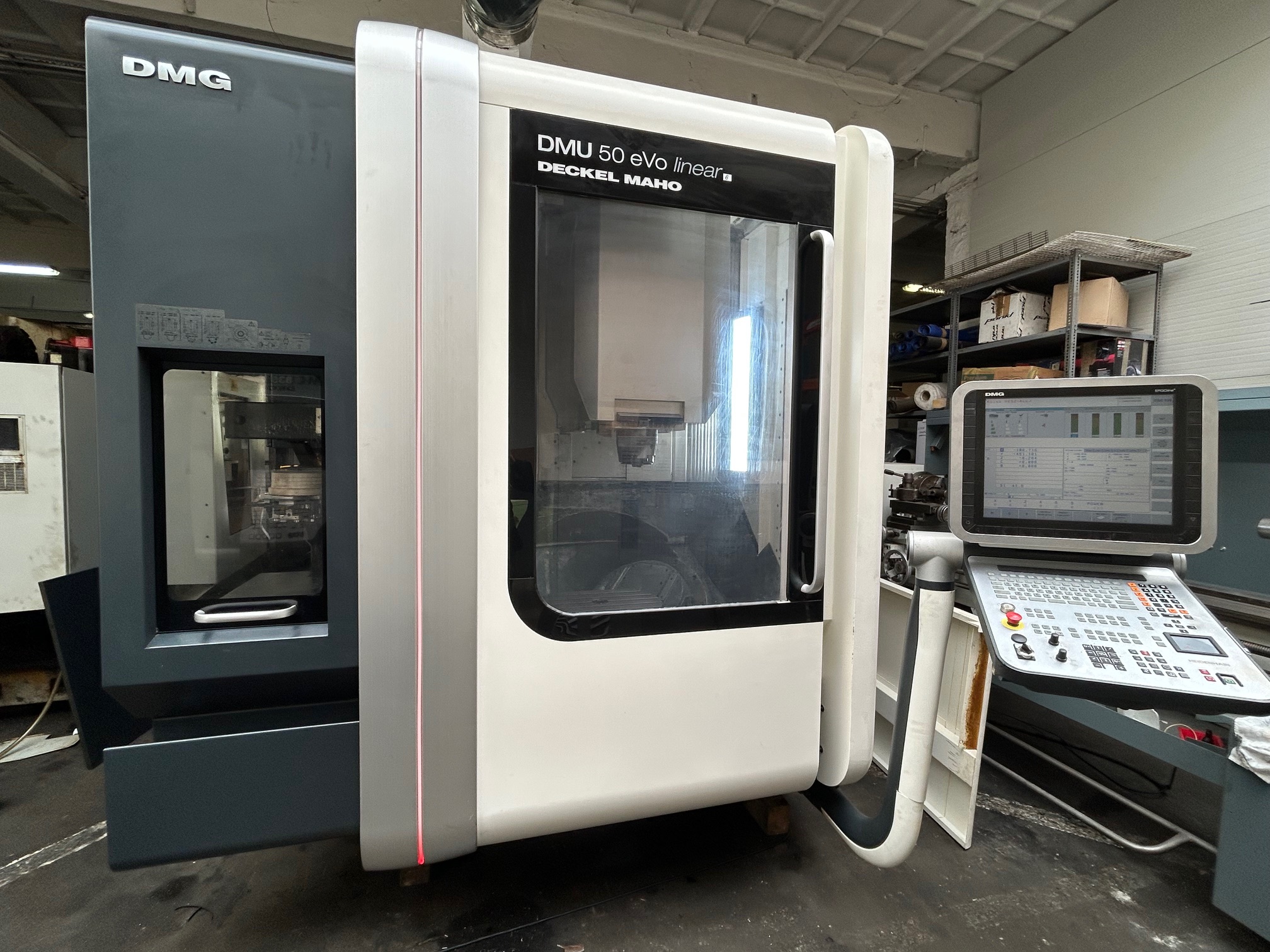

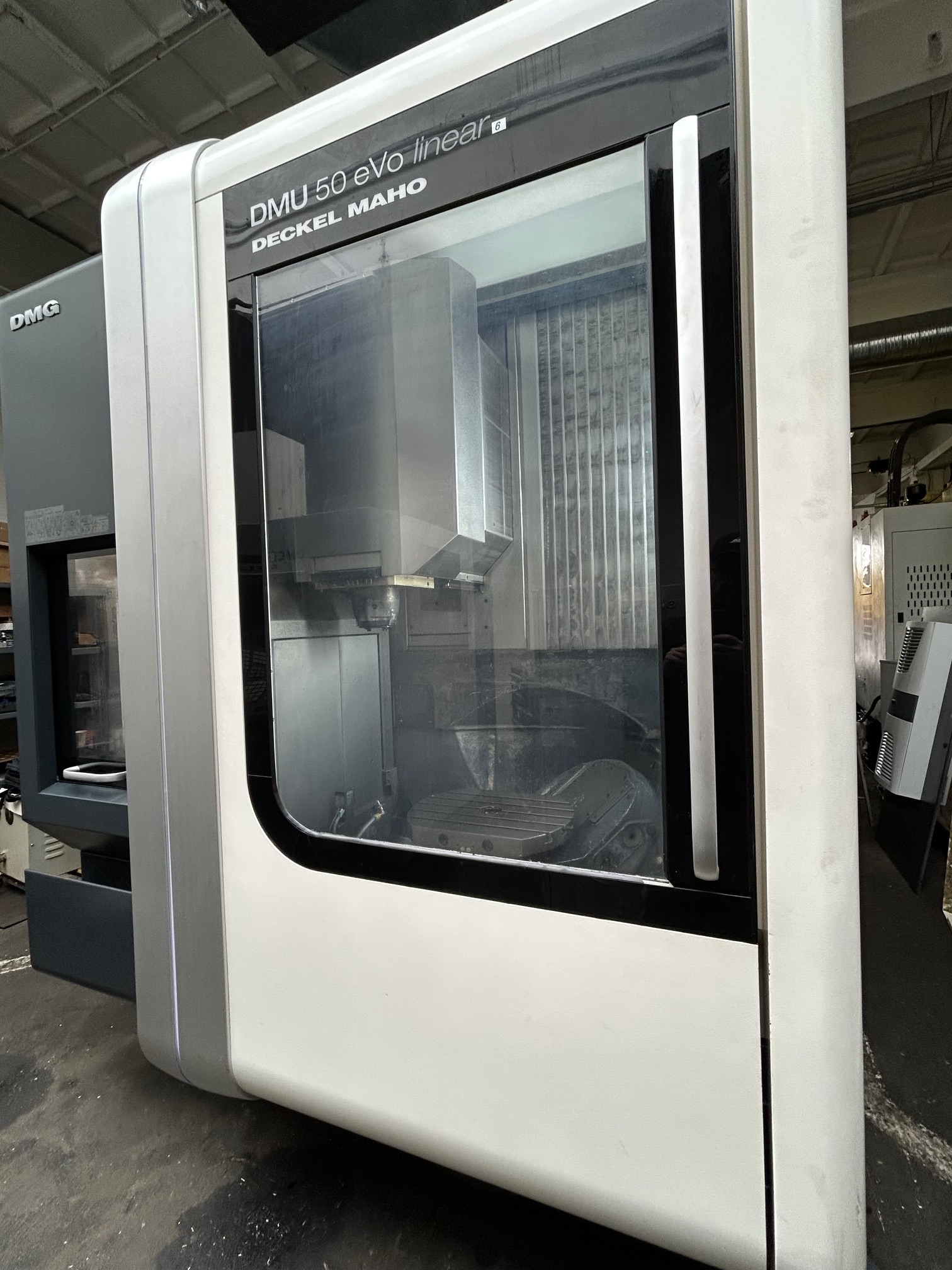

Deckel Maho DMG DMU 50 eVo linear

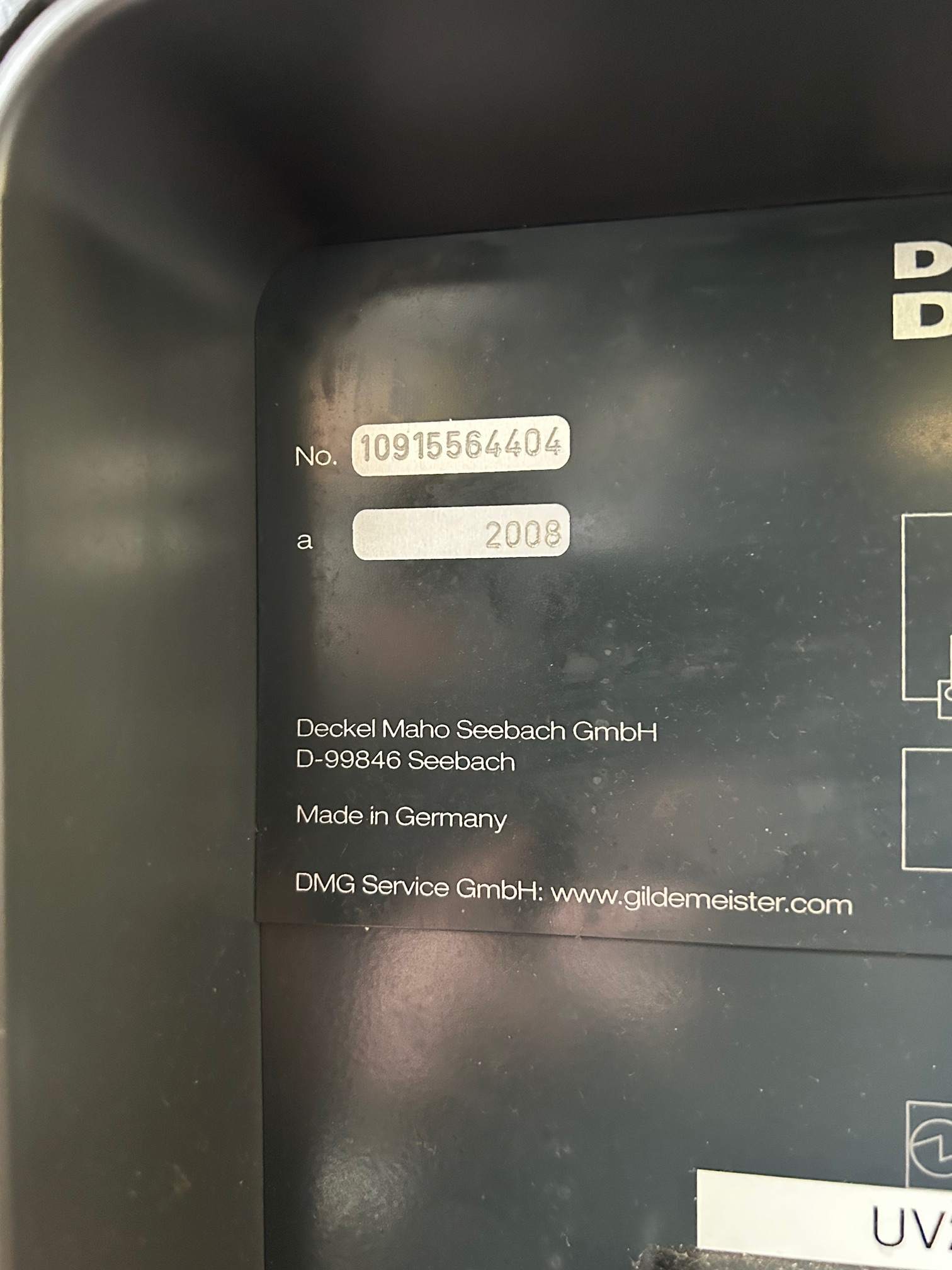

Year: 2008

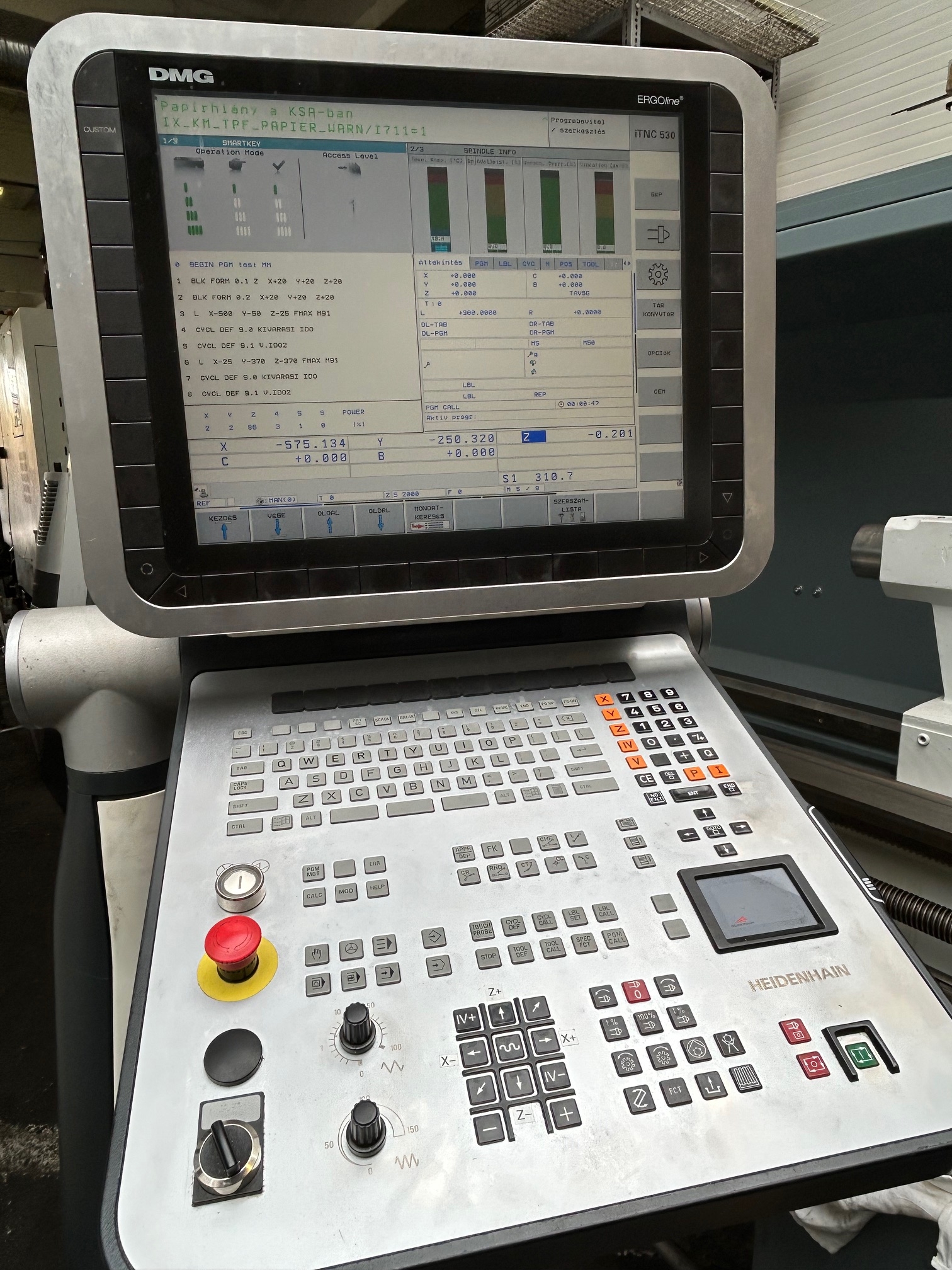

CNC controller: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis degrees: 360º (0,001)
B-axis degrees: 0º/108º (0,001)
Rapid traverse m/min: 80/50/50

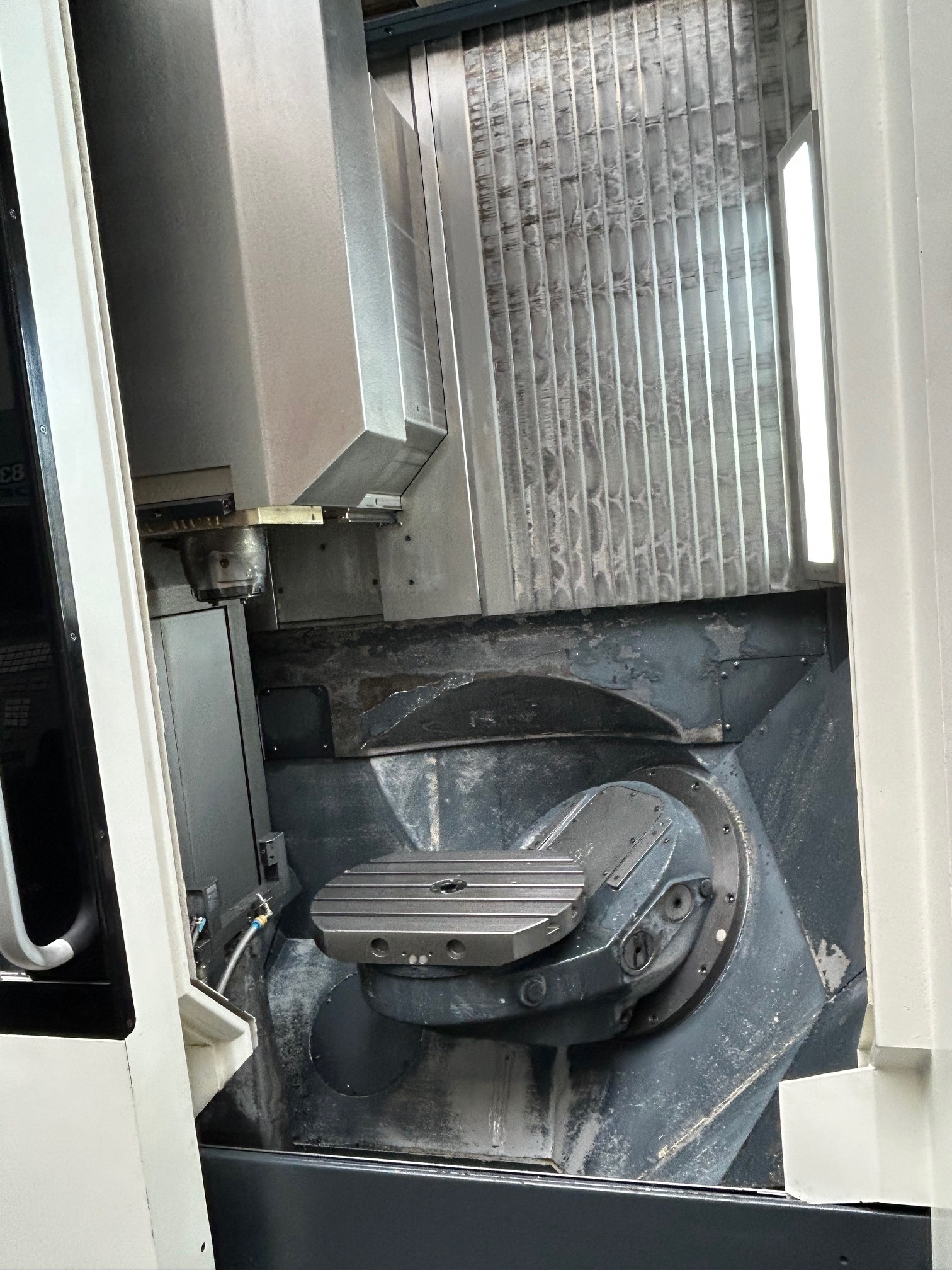

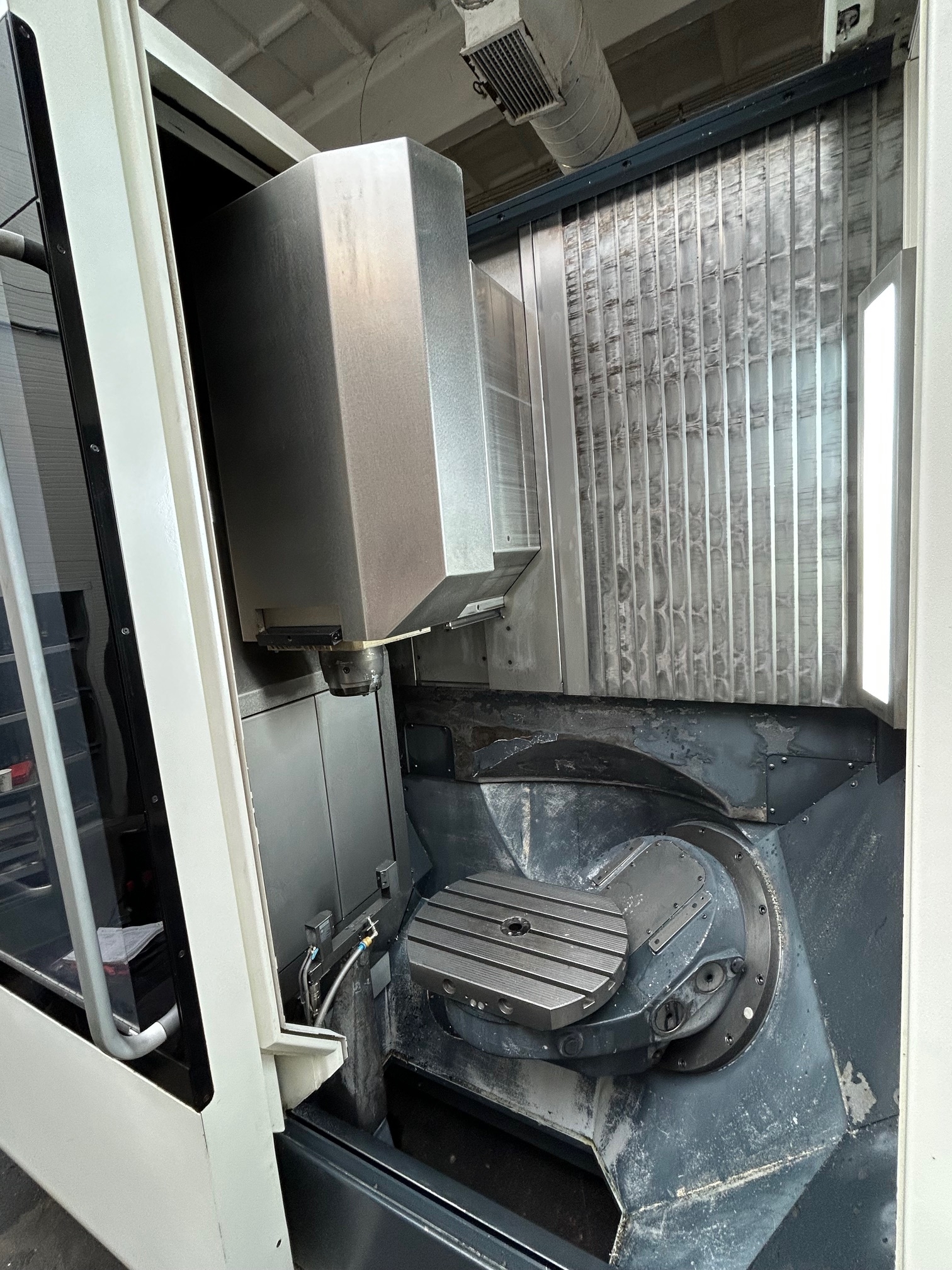

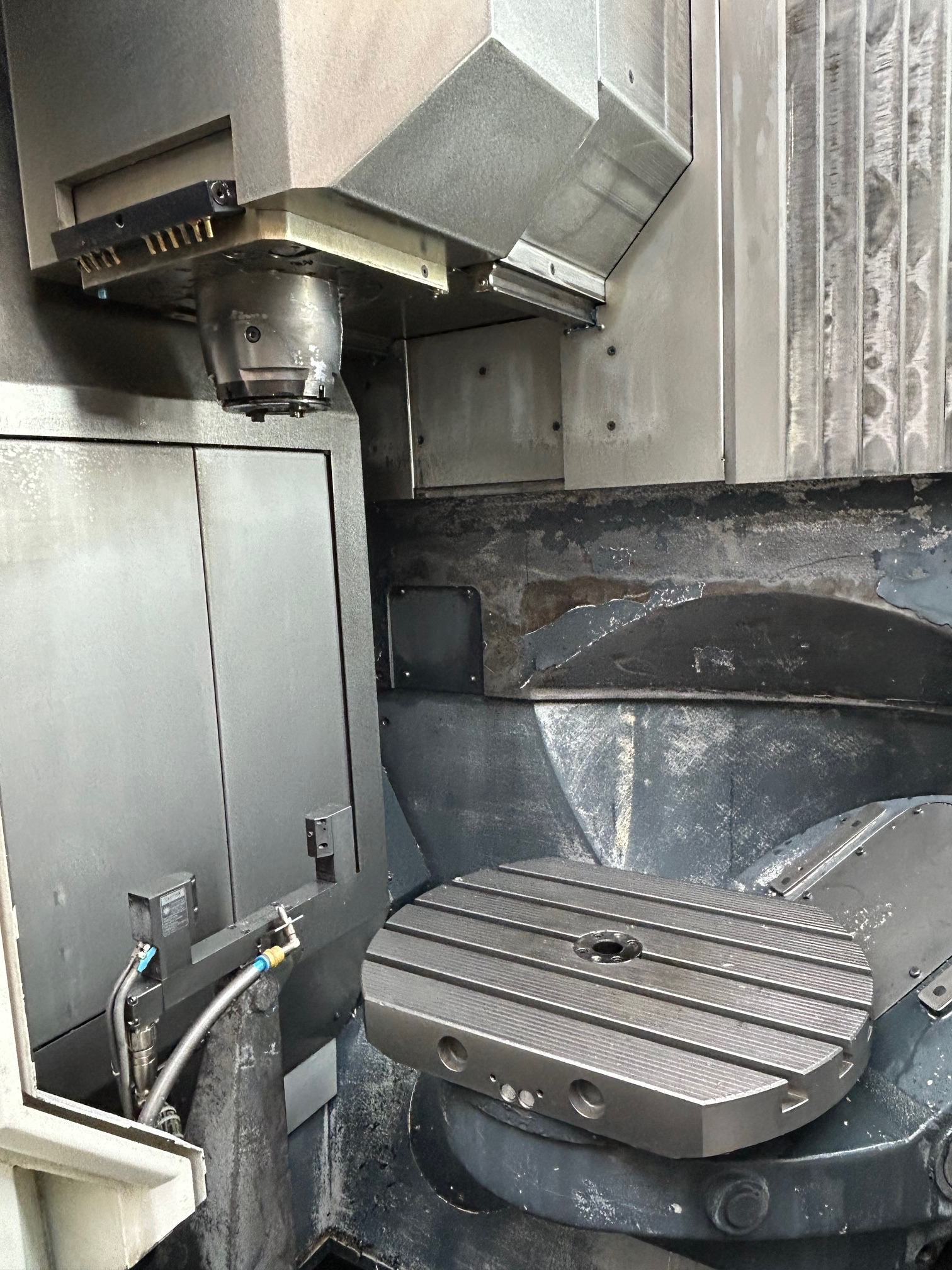

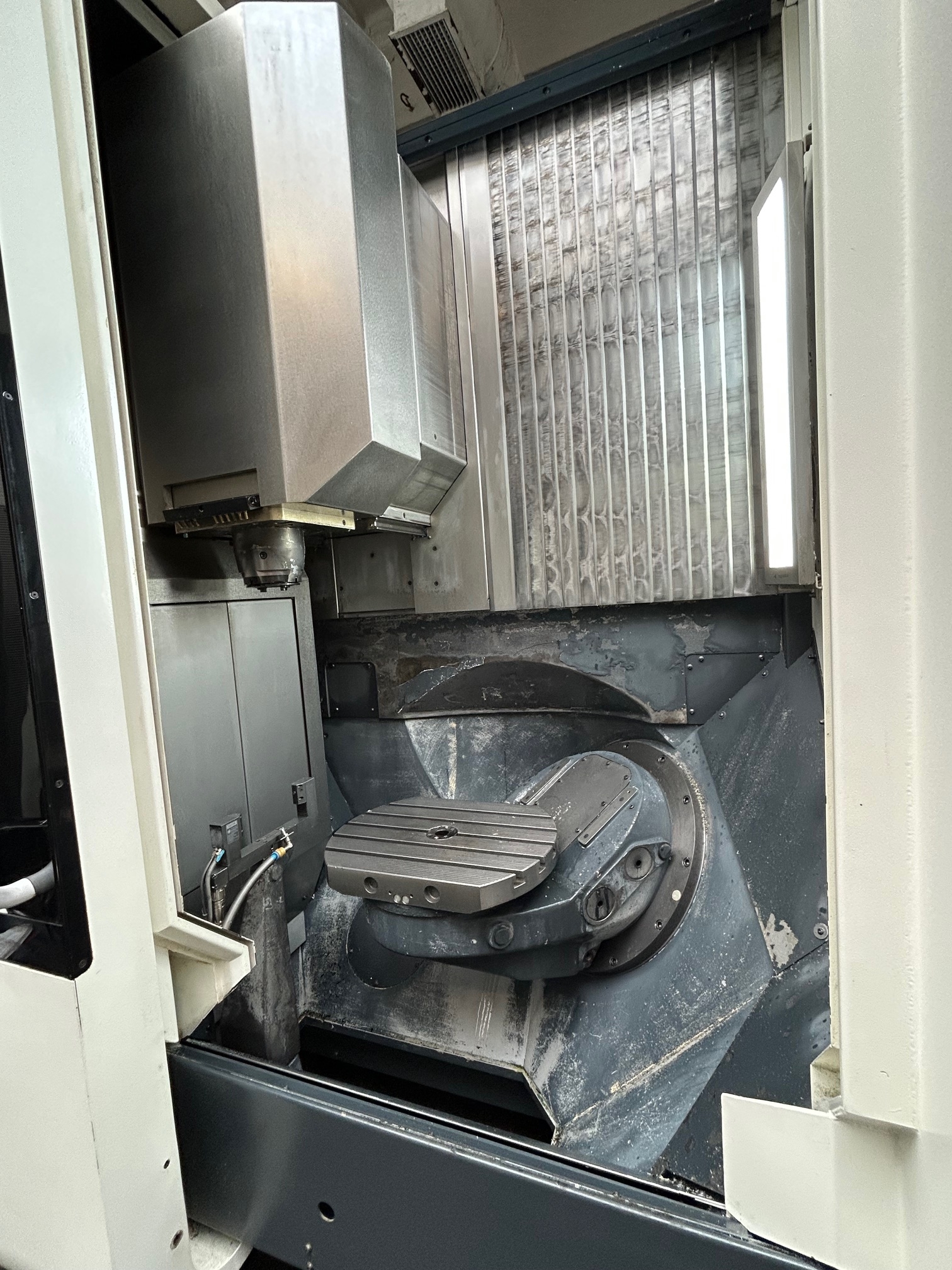

Milling/turning table nc:
Table dimensions mm: Ø390
Maximum workpiece size (D x H) mm: Ø630x500
Max. workpiece weight kg: 200
Spindle
Spindle speed rpm: 18000 rpm
Spindle drive power kW: 35/25 (40%ED/cont)
Spindle torque Nm: 130/87
Cooling
Cooling through the Spindle Center : 40 bar
Tool system
Tool holder: SK40
Tool magazine slots: 30
With free neighboring places mm: 130
With occupied neighboring places mm: 80
Max. Tool Length mm: 300
Chip-to-chip time s: 5
Weight 5900 kgs

Accessories/options:

Chip conveyor

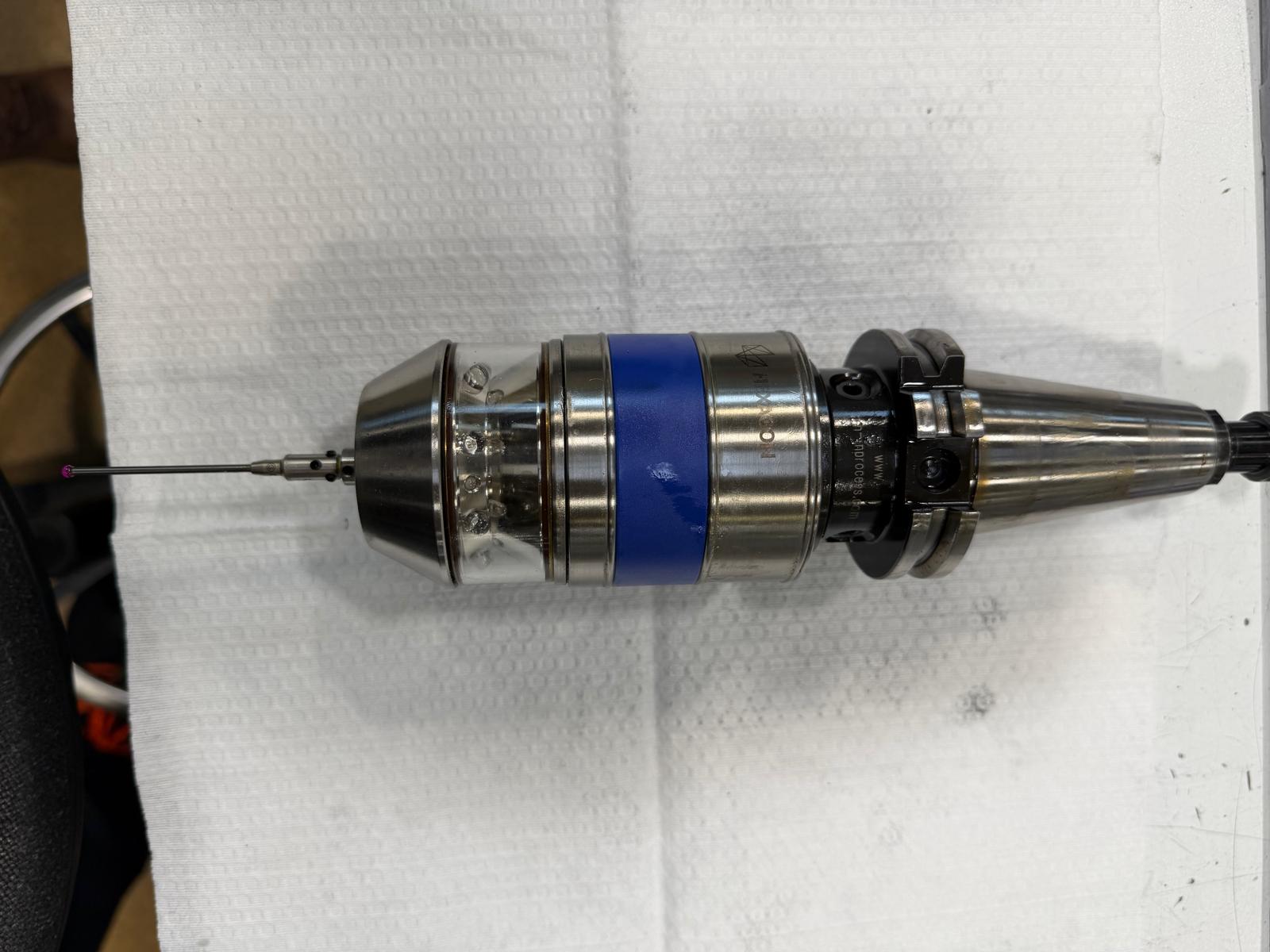

Blum touch probe

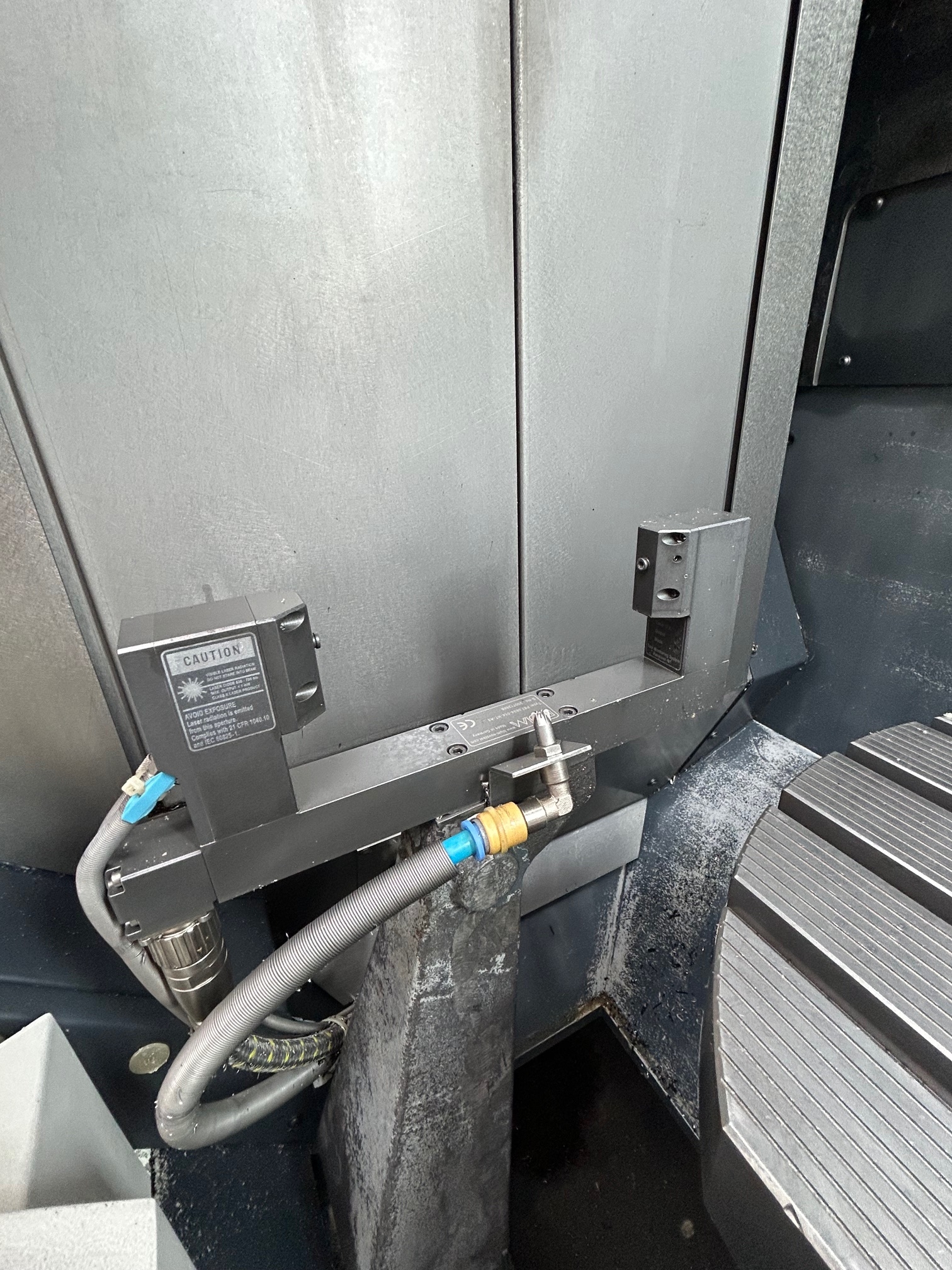

Blum Laser tool measurement for measuring tool length and diameter
Programmable coolant nozzles
Heat compensator

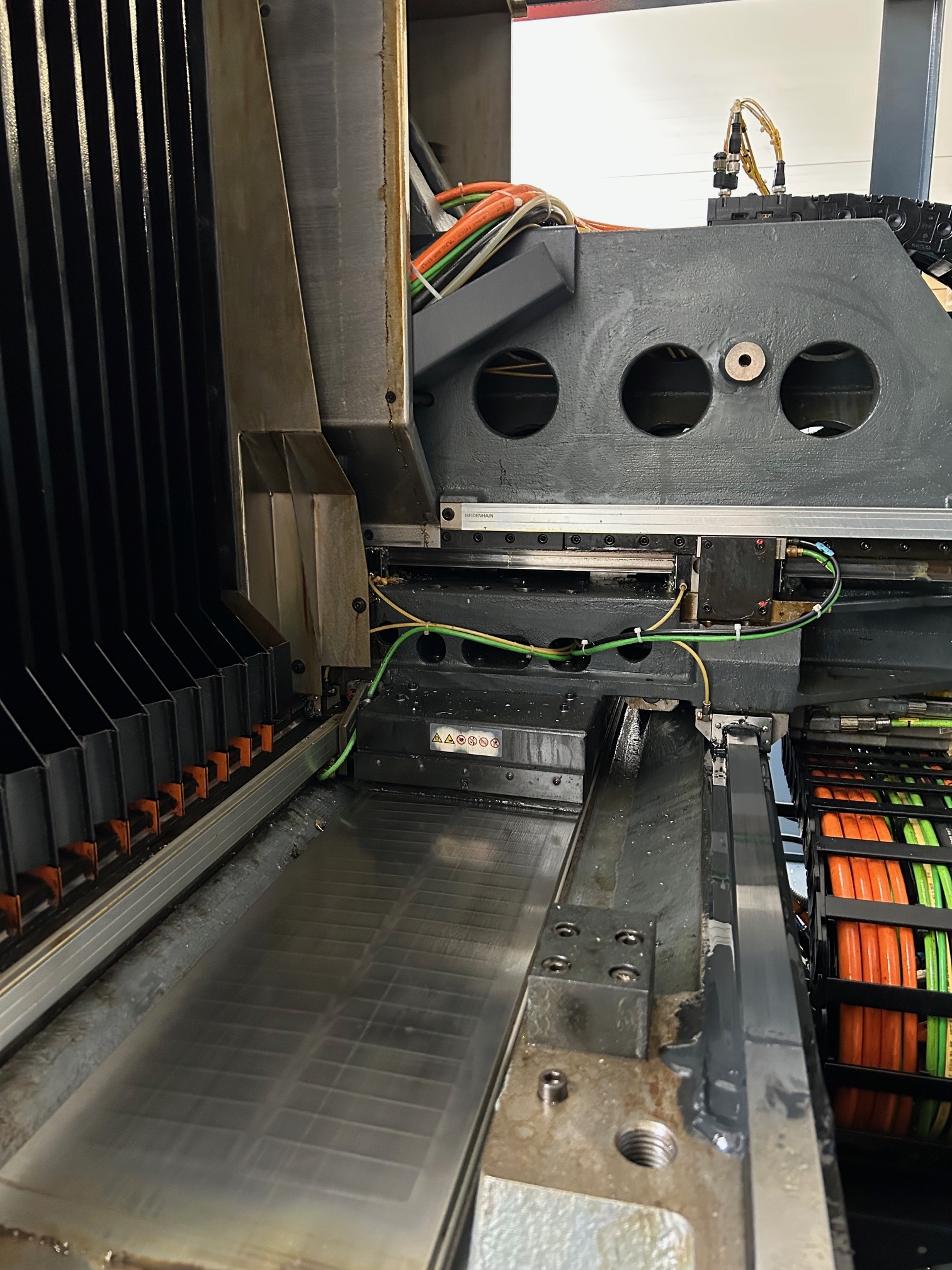

Direct measuring system XYZ

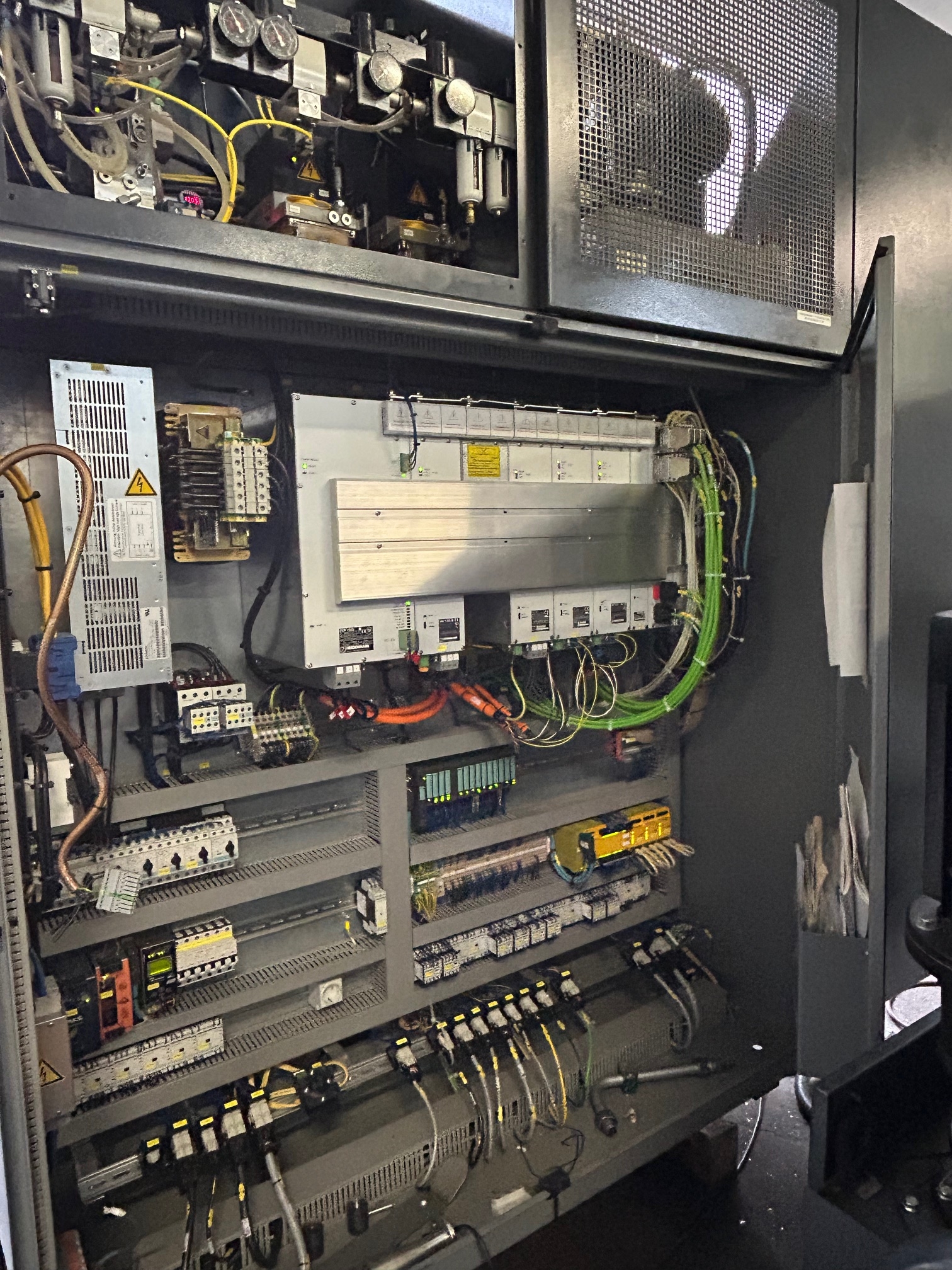

Electrical cabinet active cooling unit
Coolant tank with high pressure coolant pump, paper band filter system
With tool holders, SK40 type, 25 pieces
Full set of documentations

Under power in our warehouse!

Video available upon request!
