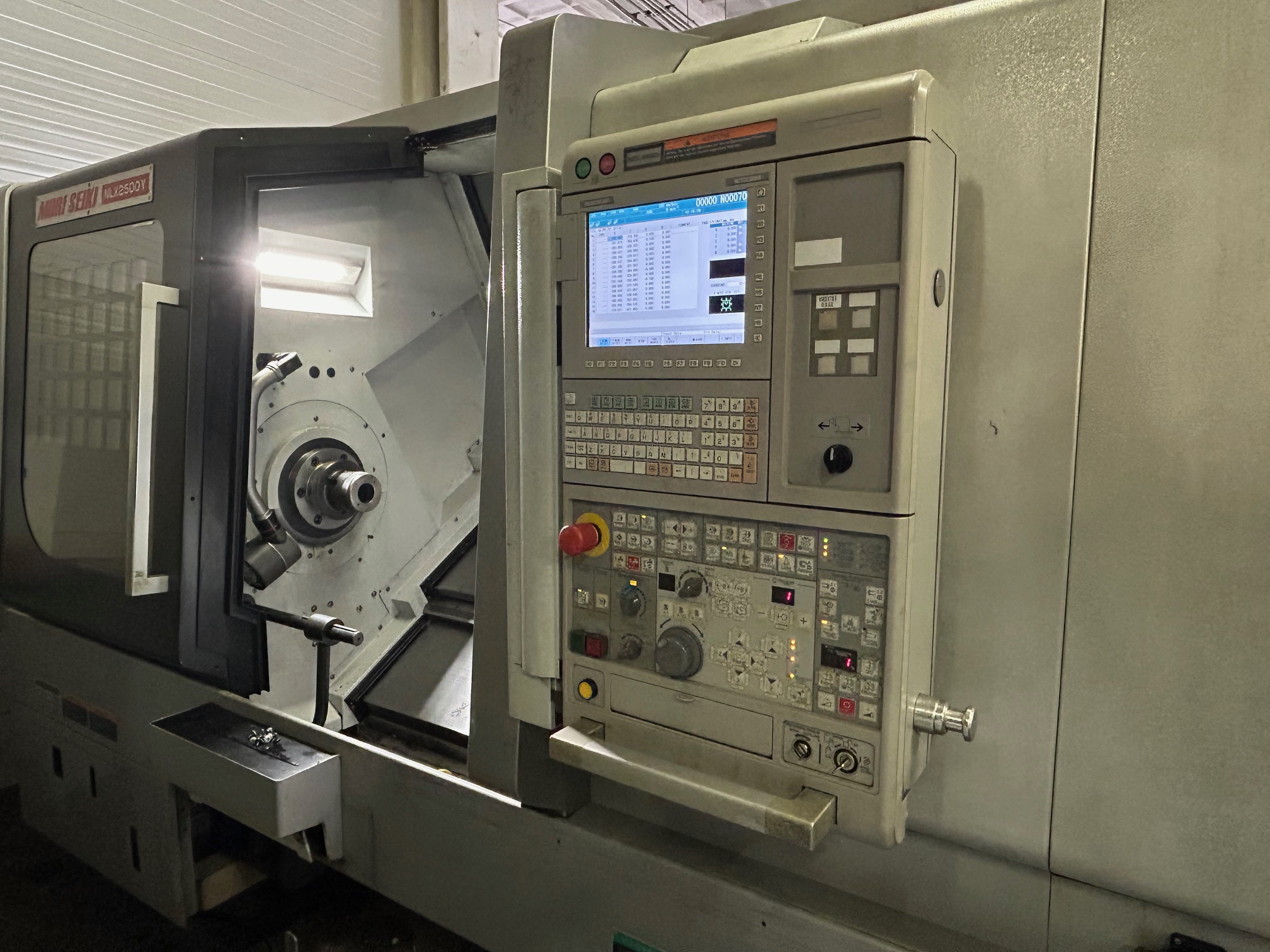

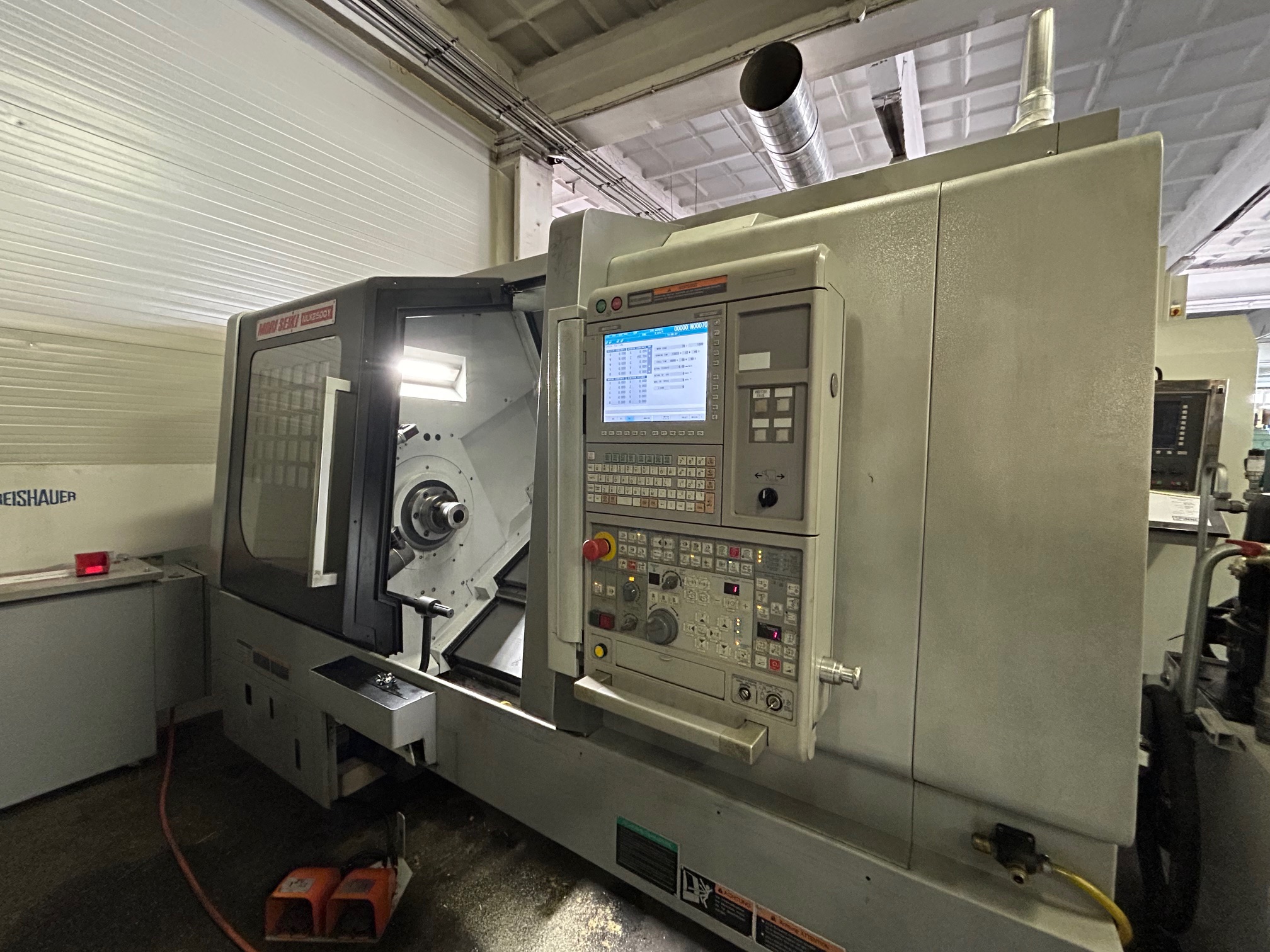

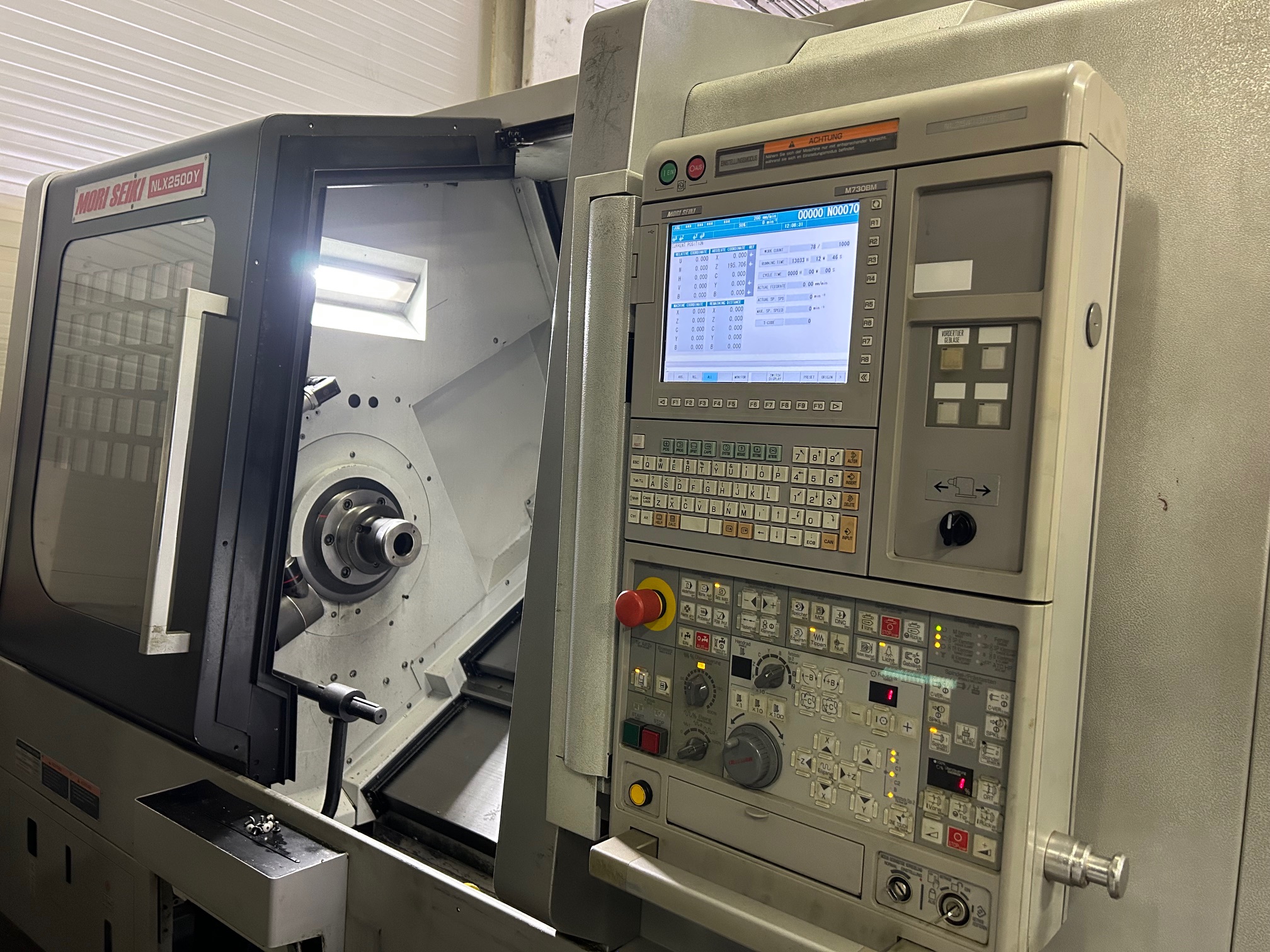

Mori Seiki NLX2500Y/ 700
Year: 2013

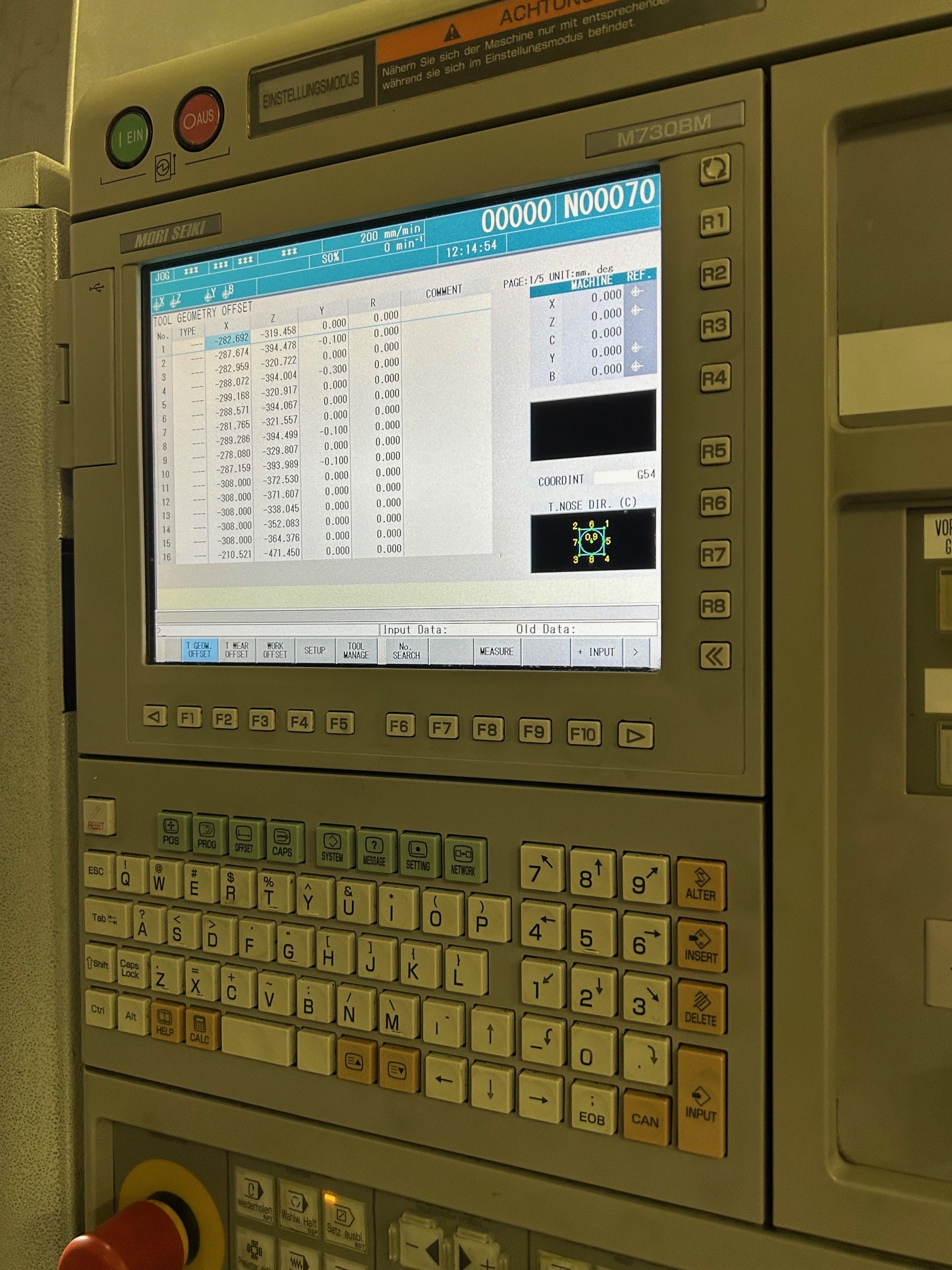

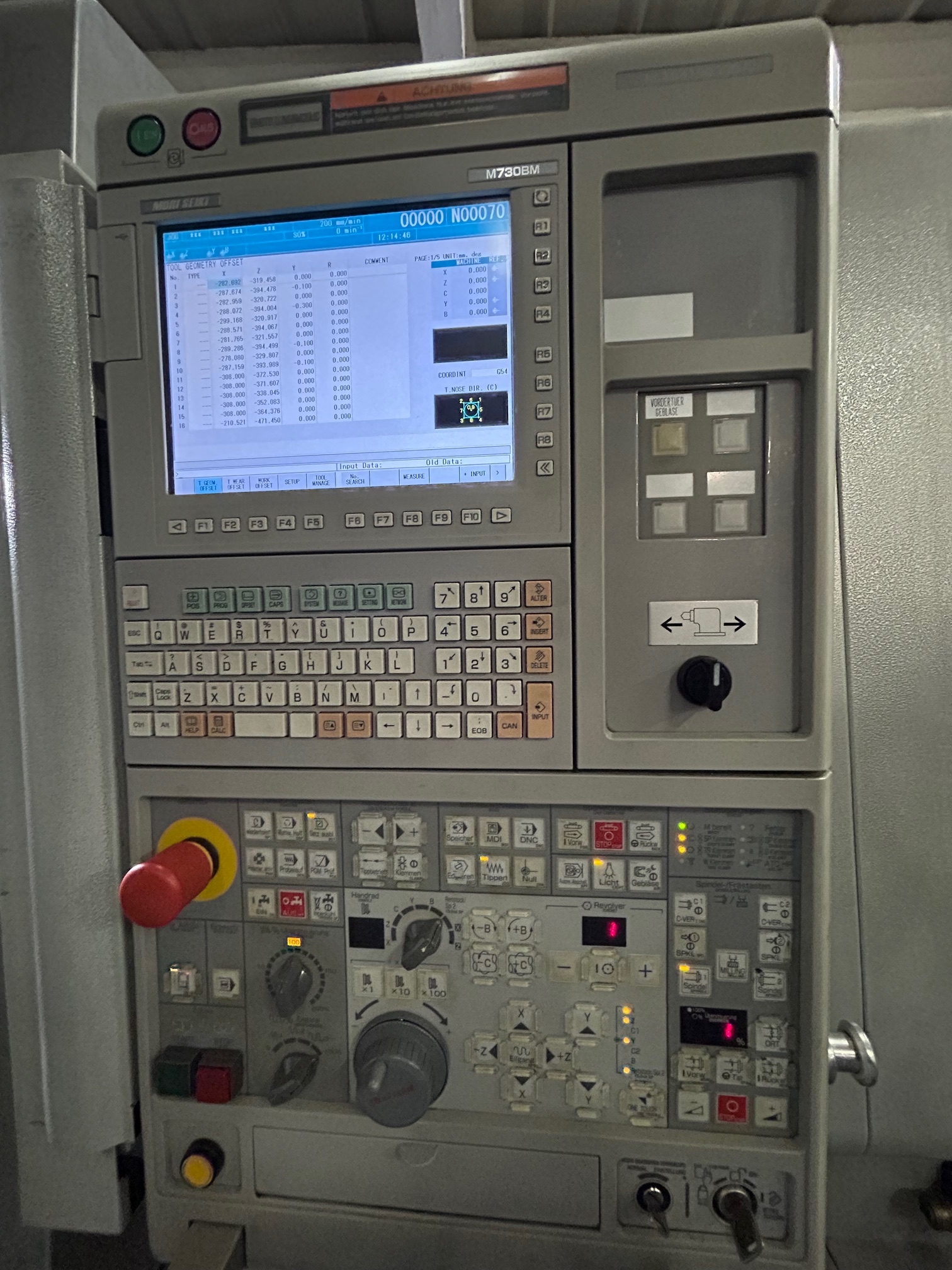

Control M730BM Mapps IV
Capacity
Swing over bed mm 920, with front cover 589 mm
Swing over cross slide 742 mm
Max. turning diameter 278 mm
Standard turning diameter 192 mm
Max. turning length 705 mm
Bar work capacity 80 mm
Through-spindle hole diameter 90 mm
Travel
X-axis 260 mm
Y-axis ±50 mm
Z-axis 795 mm
Tailstocktravel (B-axis) 734 mm
Max. spindle speed 4,000 rpm
Spindle nose JIS A2-88
Through-spindle hole diameter 91 mm
Spindle bearing inner diameter 140 mm
Min. spindle indexing increment 0.001°

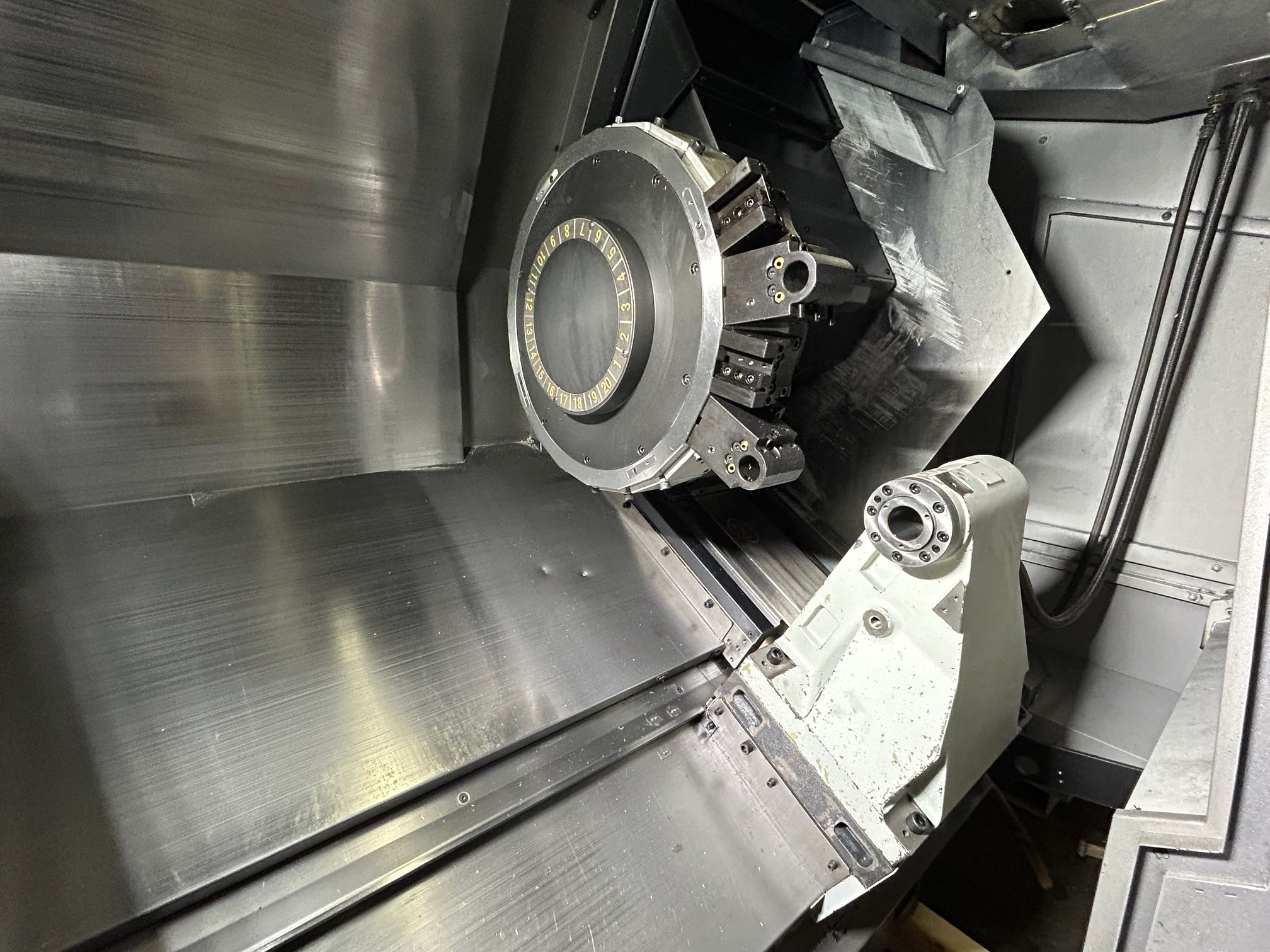

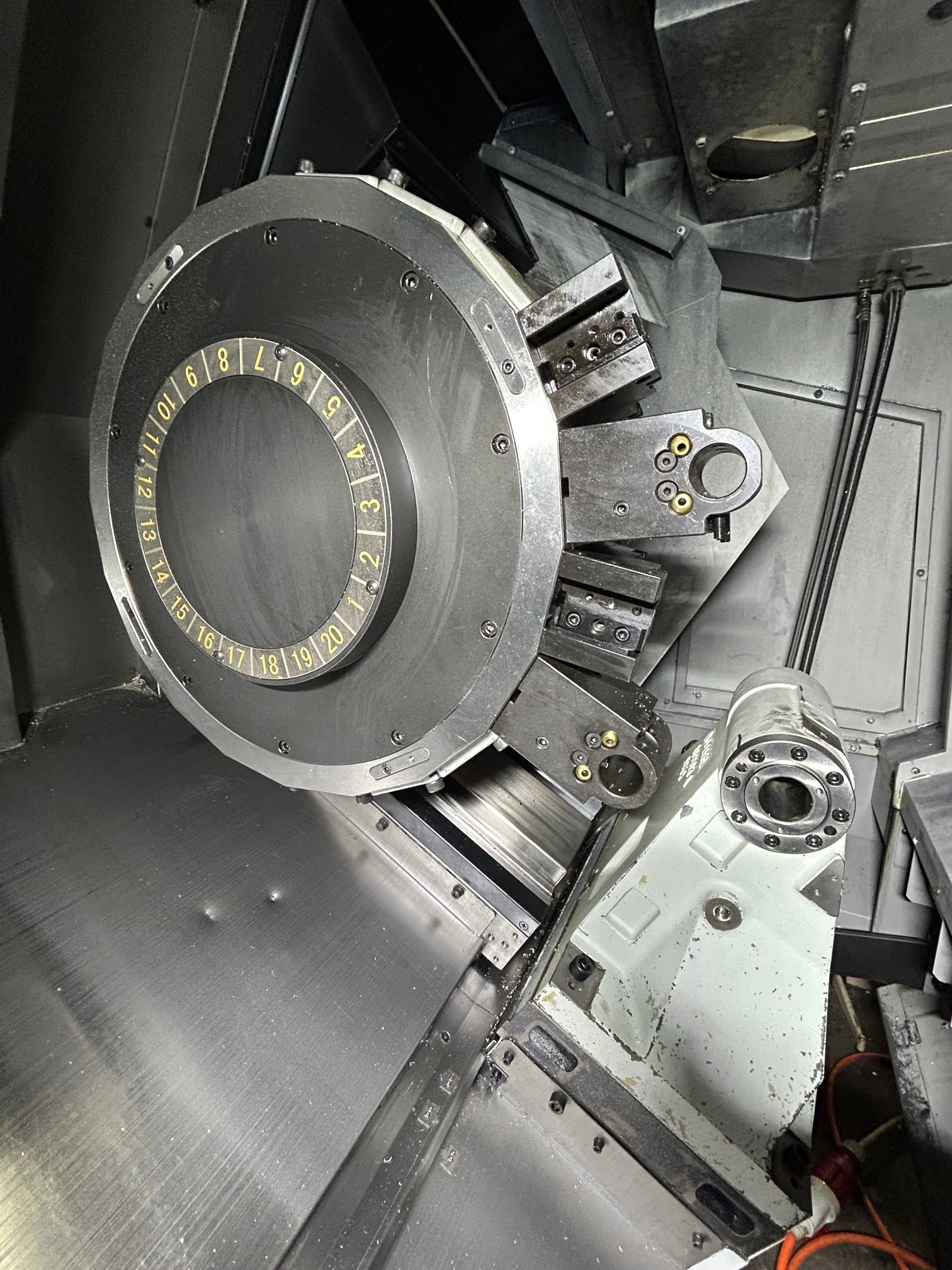

Turret
Number of tool stations 20 positions
Shank height for square tool 20 mm
Shank diameter for boring bar 32 mm
Turret indexing time sec. 0.27
Max. rotary tool spindle speed 10,000 rpm
Feedrate Rapid traverse rate
X, Z: 30,000 mm/min
Y: 10,000 mm/min
Ncoc Rjywyncezcgw Usp
Tailstock: 20,000 mm/min
Tailstock:
Tailstock travel 734 mm
Taper hole of tailstock spindle
Live center: MT5
Motor for Spindle
4,000 min-1 kW (HP) 18.5/24.7 (25%ED/50%ED/cont)
Rotary tool spindle drive motor 10,000 min-1 kW (HP) 5.5/5.5/3.7 (3 min./5 min./cont)
Feed motor X, Y, Z: 3 kW
Tailstock: 2 kW
Power sources
(Standard)
Electrical power supply (cont) 33.5 kVA
Tank capacity Coolant tank capacity 367 Liter
Machine size
Machine height 2187 mm
Floor space (width × depth) (Including a chip conveyor) 3994×2080 mm
Mass of machine 6200 kg

Accessories/options:

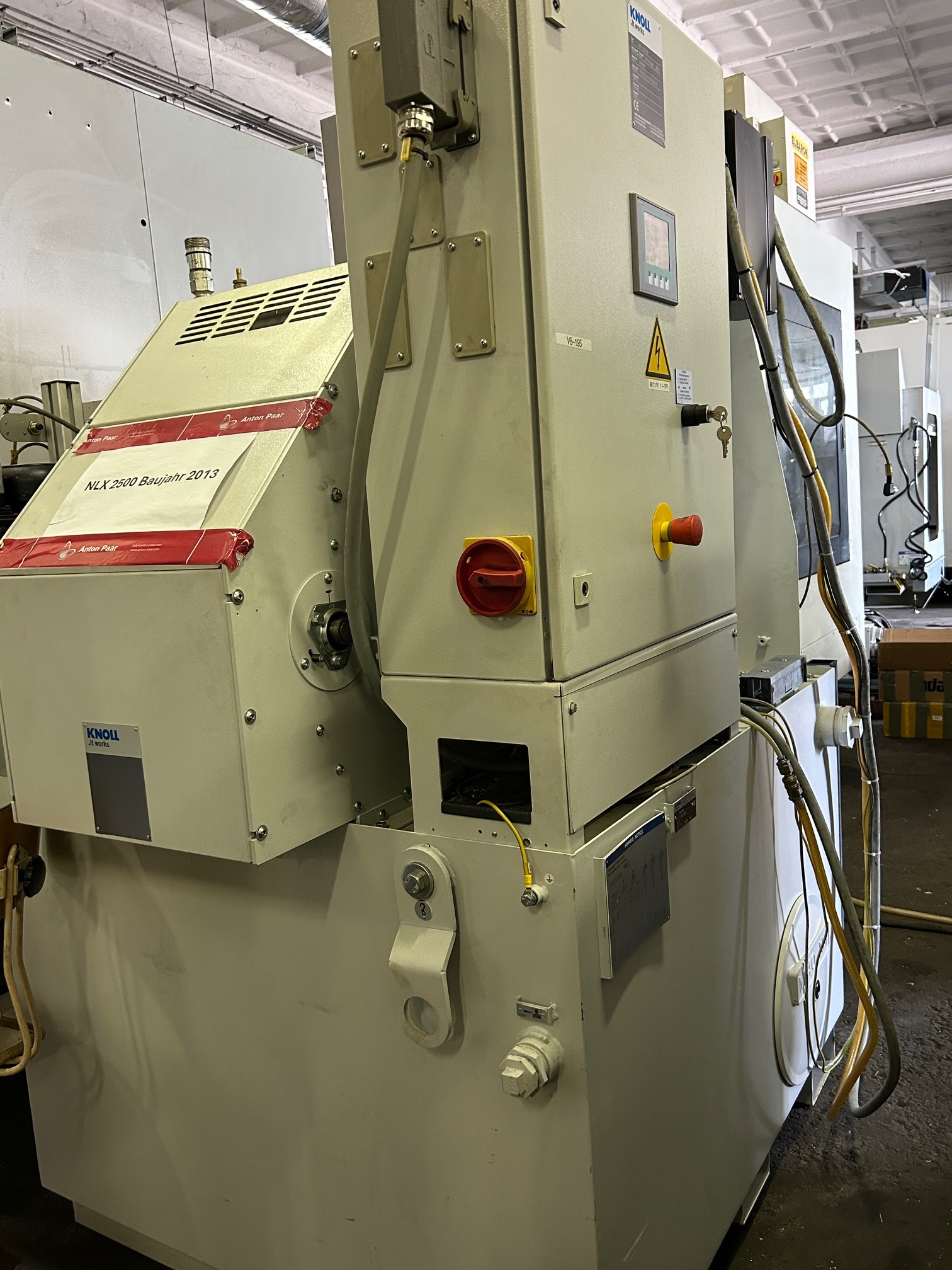

- high pressure paper band filter type, micro filtered, coolant tank
- swarf conveor
- static holders

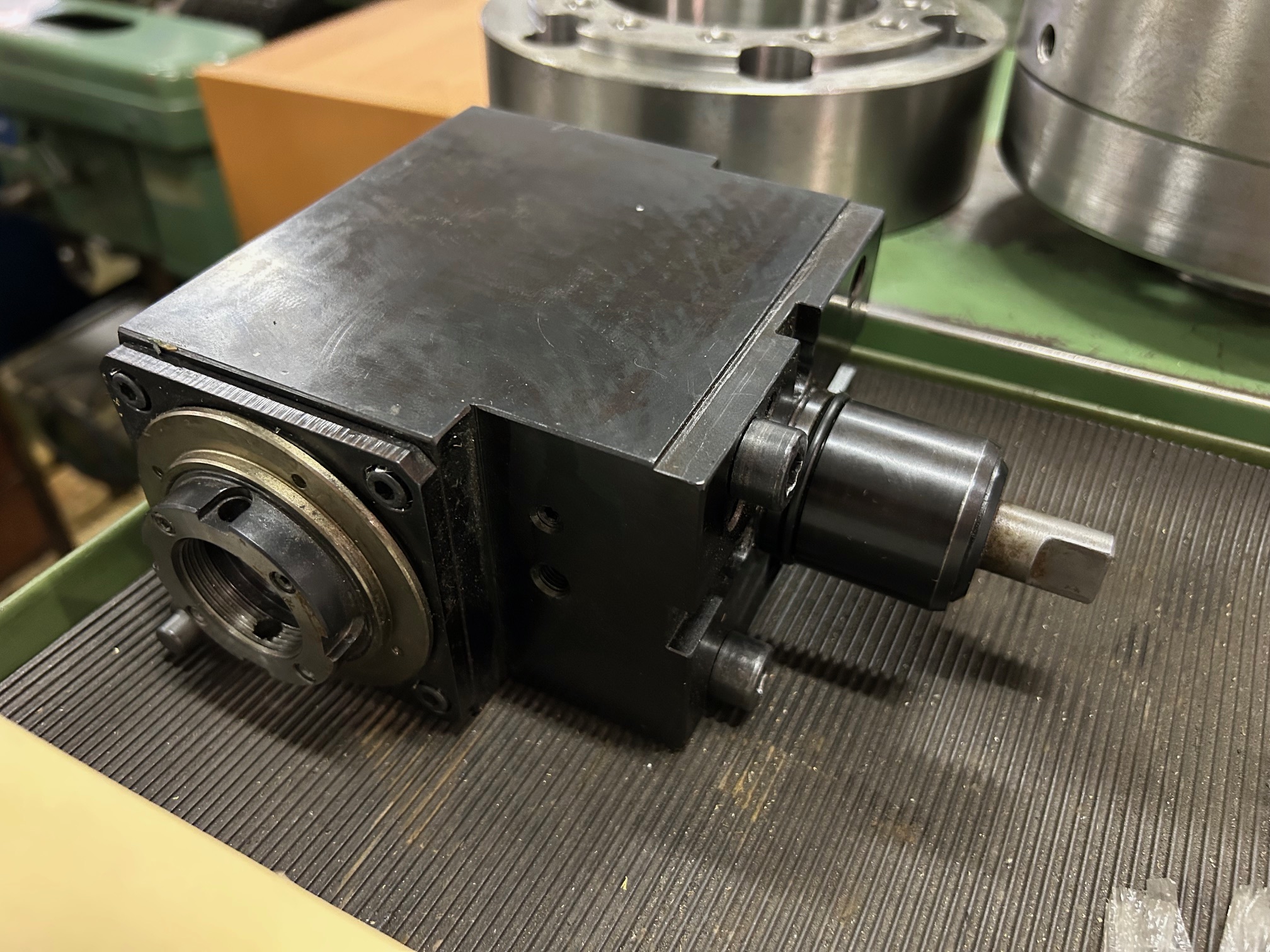

- 1 driven holder

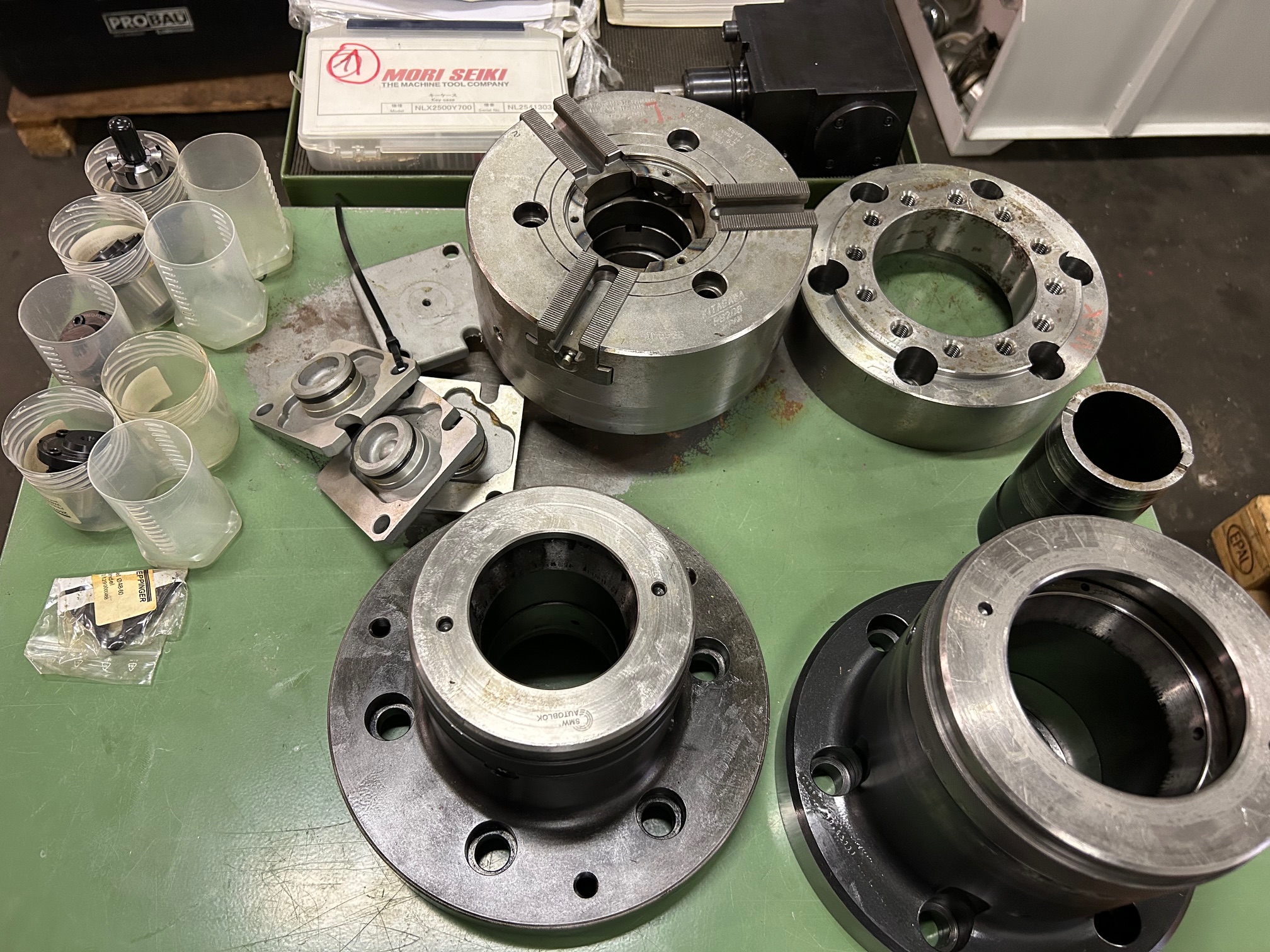

- collet type chuck 3 pieces, different sizes

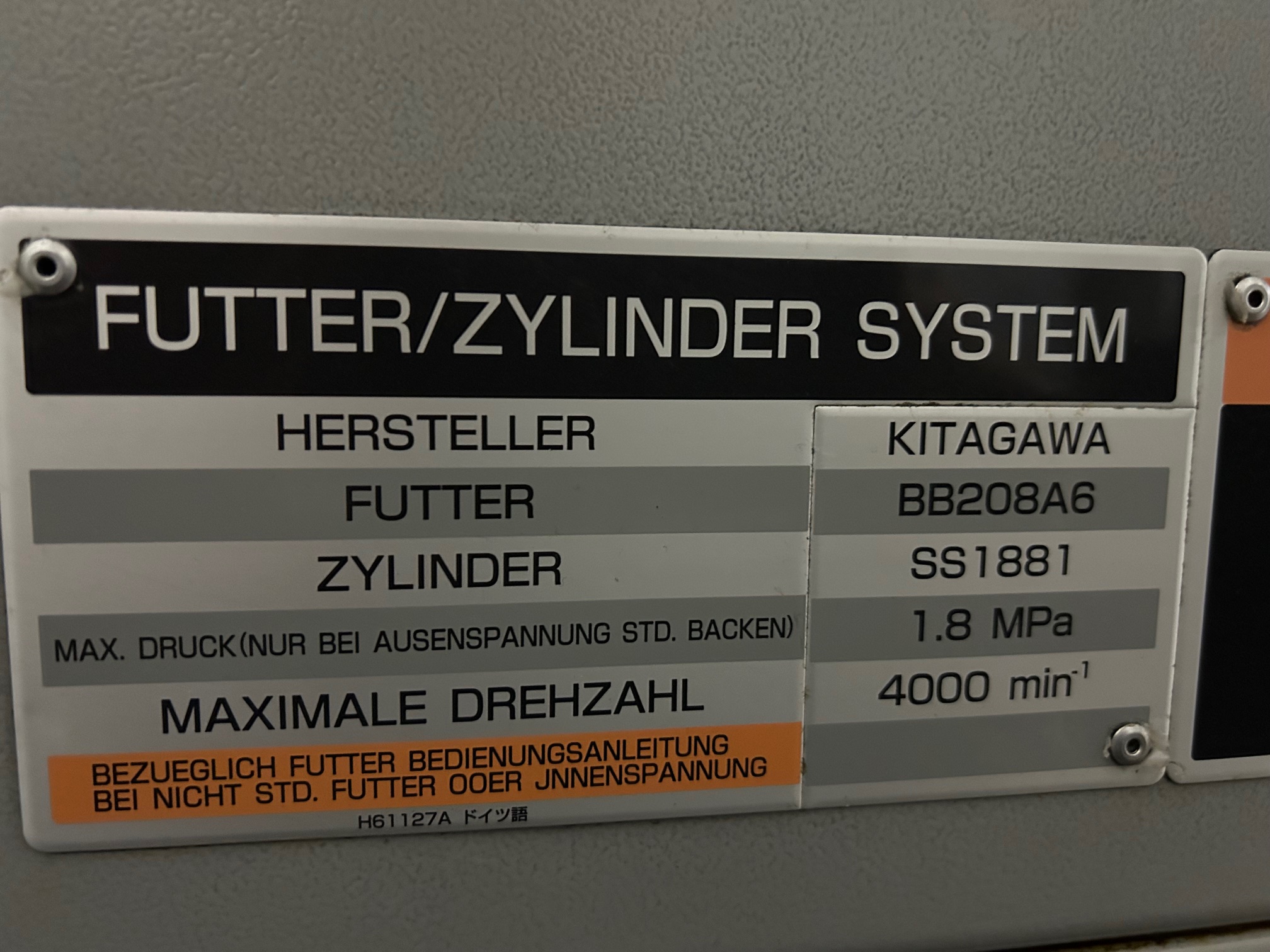

- Kitagawa 3-jaw hydraulic chuck diameter 210 mm
- Full set of documentations
- Parts catcher

Under power in our warehouse.
Video available upon request!
